SCS-8-3-40T-TR
ActiveSignal Transformer

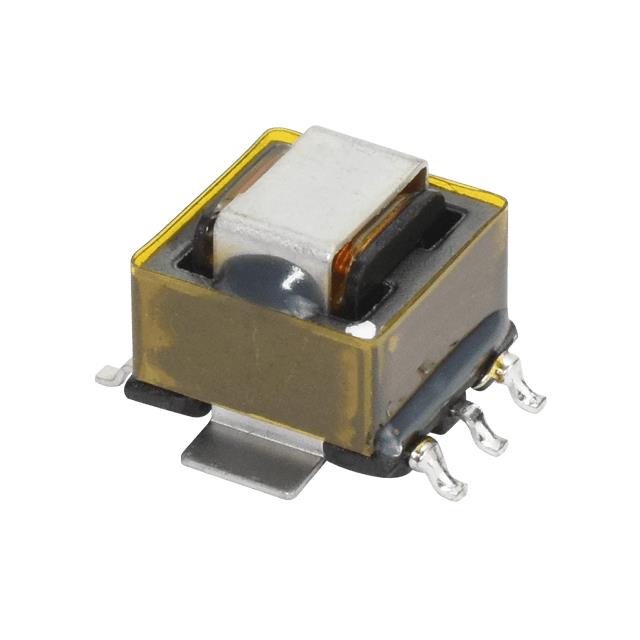

SMD CURRENT TRANSFORMER 0.88MH-T
SCS-8-3-40T-TR
ActiveSignal Transformer
SMD CURRENT TRANSFORMER 0.88MH-T
Description
General part information
SCS-8-3-40T-TR
15 A 40:1 Current Sense Transformer 50kHz ~ 1MHz 3.9mOhm Primary, 500mOhm Secondary Max 880 µH Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | SCS-8-3-40T-TR |
|---|---|
| Current Rating | 15 A |
| DC Resistance (DCR) (Primary) | 3.9 mOhm |
| DC Resistance (DCR) (Secondary Max) | 500 mOhm |
| DC Resistance Type | Primary, Secondary (Max) |
| Frequency Range (Max) | 1 MHz |
| Frequency Range (Min) | 50 kHz |
| Height - Seated (Max) | 0.307 in |
| Inductance | 880 µH |
| Mounting Type | Surface Mount |
| Size / Dimension Length | 0.512 in |
| Size / Dimension Width | 0.433 in |
| Termination Style | Gull Wing |
| Turns Ratio - Primary | 40 |
| Turns Ratio - Secondary | 1 |
| Type | Invasive |
