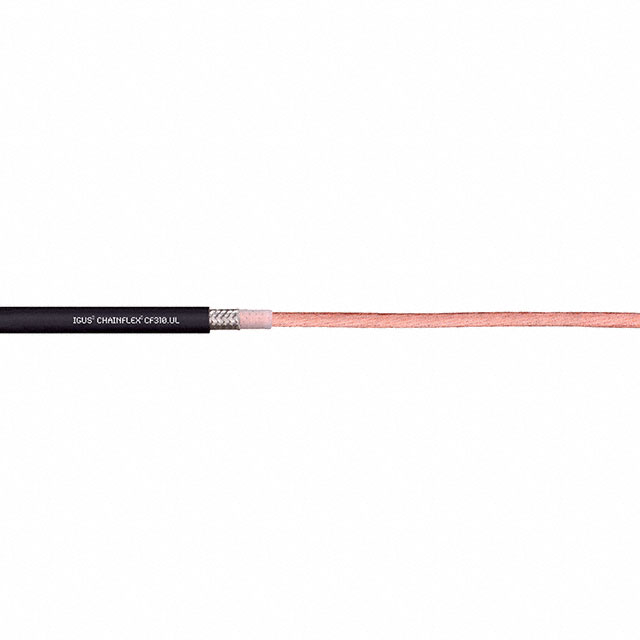

CF310-UL-950-01

Active

Igus

TPE 1C-3/0 AWG, HOOK UP WIRE 1KV

Deep-Dive with AI

Search across all available documentation for this part.

CF310-UL-950-01

Active

Igus

TPE 1C-3/0 AWG, HOOK UP WIRE 1KV

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CF310-UL-950-01	CF310 Series

Cable Type	Hook-Up, Shielded	Hook-Up, Shielded
Conductor Material	Copper, Bare	Copper, Bare
Features	Oil Resistant, Abrasion Resistant, UV Resistant	Oil Resistant, Abrasion Resistant, UV Resistant
Jacket (Insulation) Diameter	-	13 mm
Jacket (Insulation) Diameter [diameter]	0.827 in	0.256 - 1.083 in
Jacket (Insulation) Diameter [diameter]	21.01 mm	0.512 - 27.5 mm
Jacket (Insulation) Material	Thermoplastic Elastomer (TPE)	Thermoplastic Elastomer (TPE)
Jacket Color	Black	Black
Length	Enter Number of Feet in Order Quantity	Enter Number of Feet in Order Quantity
Operating Temperature [Max]	90 °C	90 °C
Operating Temperature [Min]	-35 °C	-35 °C
Ratings	UL Style 21218	UL Style 21218
Spool Size	-	1000 ft
Spool Size	-	304.8 m
Voltage	1000 V	1000 V
Wire Gauge	-	1 - 350 MCM (kcmil)

CF310 Series

TPE 1C/350MCM, HOOK UP WIRE 1KV

Part	Wire Gauge	Voltage	Jacket (Insulation) Material	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Ratings	Operating Temperature [Min]	Operating Temperature [Max]	Length	Cable Type	Features	Jacket Color	Spool Size	Spool Size	Jacket (Insulation) Diameter [diameter]
Igus CF310-UL-1850-01	350 MCM (kcmil)	1000 V	Thermoplastic Elastomer (TPE)	Copper, Bare	27.5 mm	1.083 in	UL Style 21218	-35 °C	90 °C	Enter Number of Feet in Order Quantity	Hook-Up, Shielded	Abrasion Resistant, Oil Resistant, UV Resistant	Black
Igus CF310-UL-350-01	2 AWG	1000 V	Thermoplastic Elastomer (TPE)	Copper, Bare	0.512 in		UL Style 21218	-35 °C	90 °C	Enter Number of Feet in Order Quantity	Hook-Up, Shielded	Abrasion Resistant, Oil Resistant, UV Resistant	Black	1000 ft	304.8 m	13 mm
Igus CF310-UL-1200-01	4 aught AWG	1000 V	Thermoplastic Elastomer (TPE)	Copper, Bare	22 mm	0.866 in	UL Style 21218	-35 °C	90 °C	Enter Number of Feet in Order Quantity	Hook-Up, Shielded	Abrasion Resistant, Oil Resistant, UV Resistant	Black
Igus CF310-UL-100-01	8 AWG	1000 V	Thermoplastic Elastomer (TPE)	Copper, Bare	8.5 mm	0.335 "	UL Style 21218	-35 °C	90 °C	Enter Number of Feet in Order Quantity	Hook-Up, Shielded	Abrasion Resistant, Oil Resistant, UV Resistant	Black	1000 ft	304.8 m
Igus CF310-UL-25-01	13.5 AWG	1000 V	Thermoplastic Elastomer (TPE)	Copper, Bare	6.5 mm	0.256 in	UL Style 21218	-35 °C	90 °C	Enter Number of Feet in Order Quantity	Hook-Up, Shielded	Abrasion Resistant, Oil Resistant, UV Resistant	Black	1000 ft	304.8 m
Igus CF310-UL-500-01	1 AWG	1000 V	Thermoplastic Elastomer (TPE)	Copper, Bare	15 mm	0.591 in	UL Style 21218	-35 °C	90 °C	Enter Number of Feet in Order Quantity	Hook-Up, Shielded	Abrasion Resistant, Oil Resistant, UV Resistant	Black	1000 ft	304.8 m
Igus CF310-UL-1500-01	300 MCM (kcmil)	1000 V	Thermoplastic Elastomer (TPE)	Copper, Bare	24.5 mm	0.965 in	UL Style 21218	-35 °C	90 °C	Enter Number of Feet in Order Quantity	Hook-Up, Shielded	Abrasion Resistant, Oil Resistant, UV Resistant	Black
Igus CF310-UL-250-01	4 AWG	1000 V	Thermoplastic Elastomer (TPE)	Copper, Bare	11.99 mm	0.472 in	UL Style 21218	-35 °C	90 °C	Enter Number of Feet in Order Quantity	Hook-Up, Shielded	Abrasion Resistant, Oil Resistant, UV Resistant	Black	1000 ft	304.8 m
Igus CF310-UL-60-01	10 AWG	1000 V	Thermoplastic Elastomer (TPE)	Copper, Bare	7.49 mm	0.295 in	UL Style 21218	-35 °C	90 °C	Enter Number of Feet in Order Quantity	Hook-Up, Shielded	Abrasion Resistant, Oil Resistant, UV Resistant	Black	1000 ft	304.8 m
Igus CF310-UL-700-01		1000 V	Thermoplastic Elastomer (TPE)	Copper, Bare	17.5 mm	0.689 in	UL Style 21218	-35 °C	90 °C	Enter Number of Feet in Order Quantity	Hook-Up, Shielded	Abrasion Resistant, Oil Resistant, UV Resistant	Black	1000 ft	304.8 m

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 27.28
		500	$ 26.19
		1000	$ 25.15

Description

General part information

CF310 Series

3/0 AWG Hook-Up, Shielded Wire Black 1000V Enter Number of Feet in Order Quantity

Documents

Technical documentation and resources

No documents available
