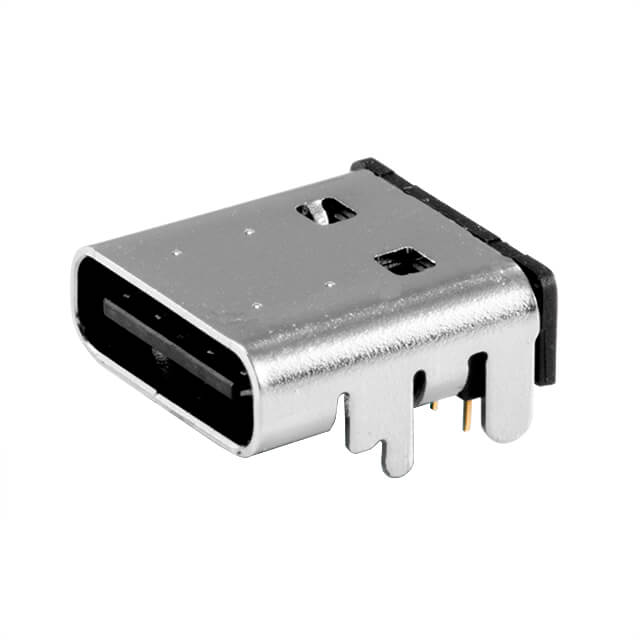

UJC-HP-G-SMT-TR
ObsoleteCUI Devices
CONN RCPT TYPE C 24POS SMD RA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UJC-HP-G-SMT-TR
ObsoleteCUI Devices
CONN RCPT TYPE C 24POS SMD RA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UJC-HP-G-SMT-TR |
|---|---|
| Connector Type | USB-C (USB TYPE-C) |
| Contact Finish | Gold |
| Current Rating (Amps) | 5 A, 1.25 A |
| Features | No Data, Power Only |
| Gender | Receptacle |
| Insulation Color | Black |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 10000 |
| Mounting Feature | Horizontal |
| Mounting Type | Through Hole, Surface Mount, Right Angle |
| Number of Contacts | 24 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Shell/Shielding Material | Stainless, Steel |
| Shielding | Shielded |
| Termination | Solder |
| Voltage - Rated | 20 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.37 | |
| 10 | $ 1.17 | |||
| 25 | $ 1.09 | |||
| 50 | $ 1.04 | |||
| 100 | $ 0.99 | |||
| Digi-Reel® | 1 | $ 1.37 | ||
| 10 | $ 1.12 | |||
| 25 | $ 1.03 | |||
| 50 | $ 0.97 | |||
| 100 | $ 0.91 | |||
| 250 | $ 0.84 | |||
| Tape & Reel (TR) | 2100 | $ 0.70 | ||
Description
General part information
UJC-HP-G-SMT-TR
USB-C (USB TYPE-C) Receptacle Connector 24 (8+16 Dummy) Position Surface Mount, Right Angle; Through Hole
