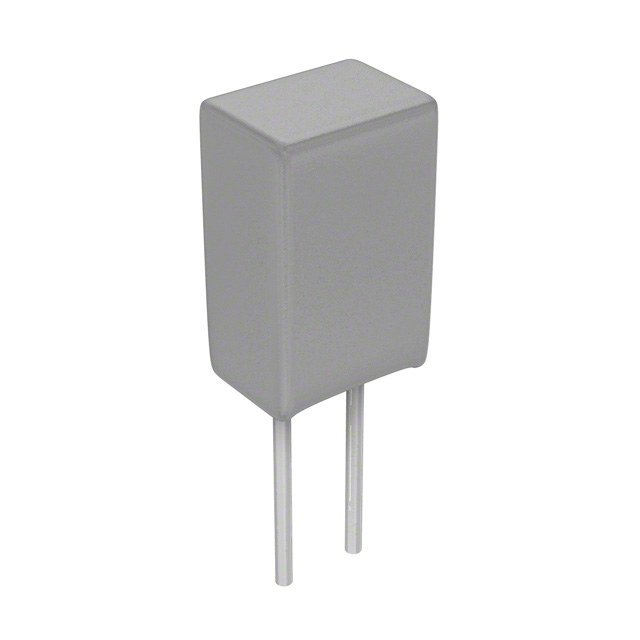

M22G560J2
ObsoleteCornell Dubilier Knowles
CAP CER 56PF 200V NP0 RADIAL
M22G560J2
ObsoleteCornell Dubilier Knowles
CAP CER 56PF 200V NP0 RADIAL
Description
General part information
M22G560J2
56 pF ±5% 200V Ceramic Capacitor C0G, NP0 Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | M22G560J2 |
|---|---|
| Applications | General Purpose |
| Capacitance | 56 pF |
| Height - Seated (Max) | 0.32 in |
| Lead Spacing | 0.2 in |
| Lead Style | Straight |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial |
| Size / Dimension Length | 0.2 in |
| Size / Dimension Width | 0.15 in |
| Temperature Coefficient | NP0, C0G |
| Tolerance | 5 % |
| Voltage - Rated | 200 VDC |
