15 MSFL RCPT RA 590 (IN,FM,BL)-5747837-4

5747837-4

Active
TE Connectivity AMP Connectors

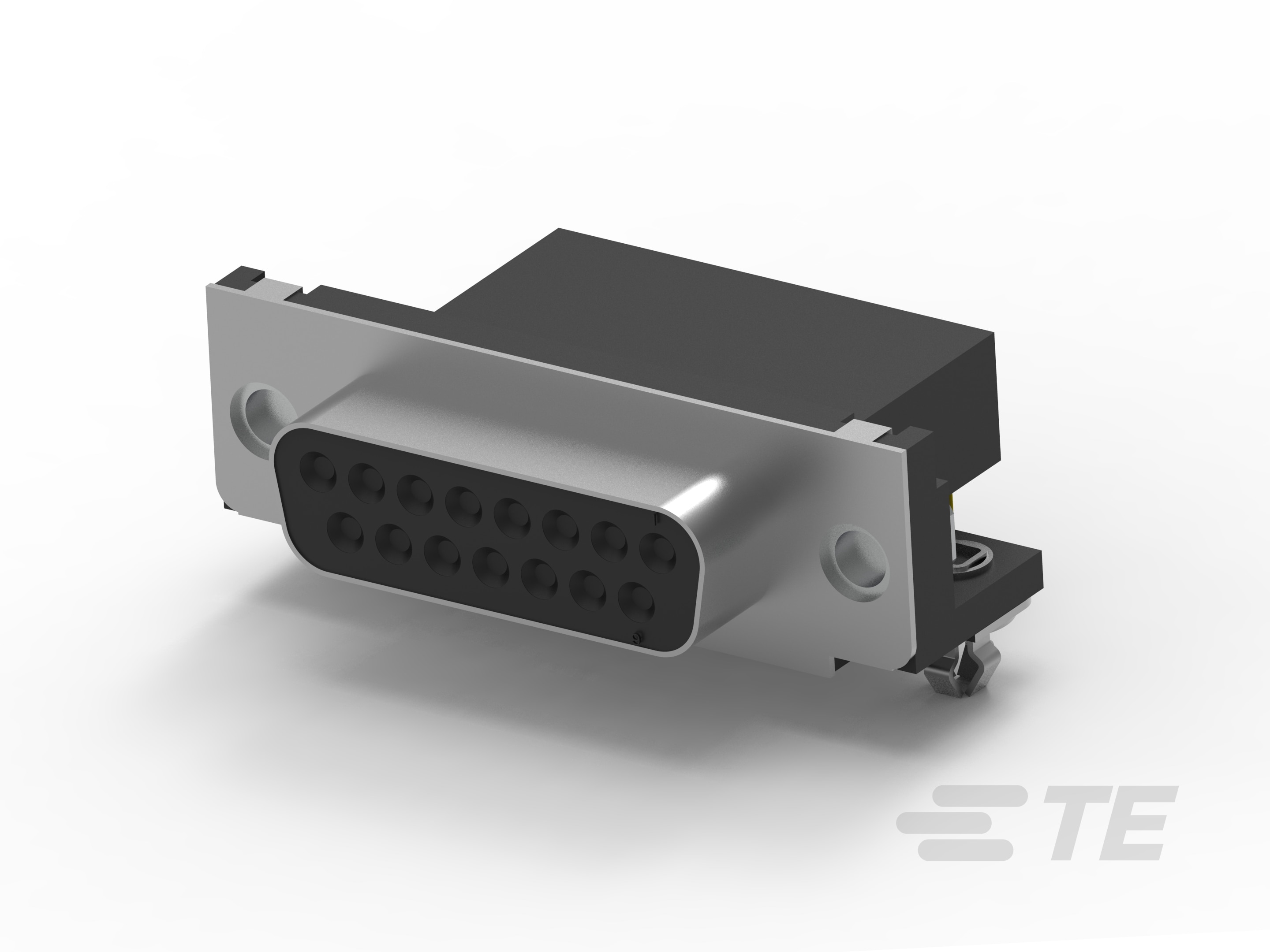

D SUB CONNECTOR, DB15, 15 CONTACTS, RECEPTACLE, SOLDER, DA, AMPLIMITE HD-20 SERIES, METAL BODY

Find alt
15 MSFL RCPT RA 590 (IN,FM,BL)-5747837-4

5747837-4

Active
TE Connectivity AMP Connectors

D SUB CONNECTOR, DB15, 15 CONTACTS, RECEPTACLE, SOLDER, DA, AMPLIMITE HD-20 SERIES, METAL BODY

Find alt

Description

General part information

5747837-4

The AMPLIMITE HD-20 series Solder-cup D-sub Connectors with phosphor bronze duplex plated contacts with gold flash on mating end, tin on solder cup with entire contact nickel under-plated, thermoplastic inserts and steel, tin or zinc plated shell.

Technical Specifications

Parameters and characteristics for this part

Specification5747837-4
Backset Spacing0.59 in
Connector LayoutA, DA
Connector StyleD-Sub
Connector TypeReceptacle, Female Sockets
Contact FinishGold
Contact Finish Thickness30 µin
Contact TypeSignal
Current Rating6 A
FeaturesGround Strap, Board Lock
FinishTin Plated
Flange FeatureShell (4-40), Housing
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole, Right Angle
Number of Positions15
Number of Rows2
Shell MaterialSteel
Shell Size2
TerminationSolder
