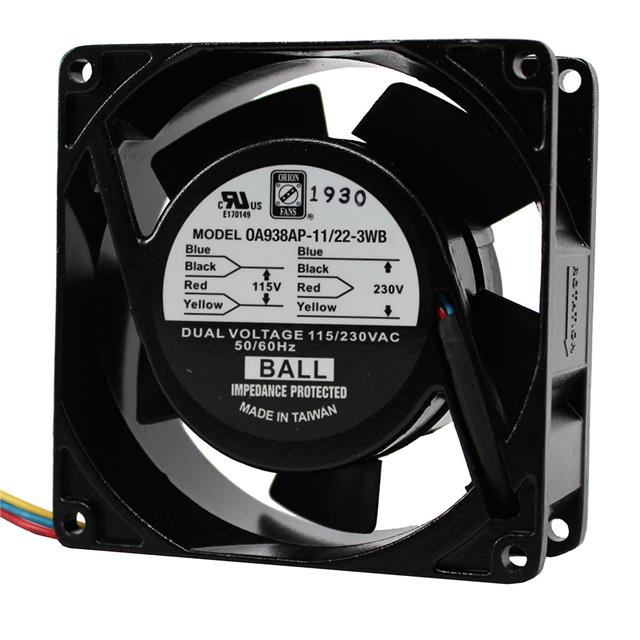

OA938AP-11/22-3WB
ActiveORION FANS
AXIAL FAN, AC, OA92AP-DUALV SERIES, BALL BEARING, SQUARE, 26CFM, 24DB, 230V, 3W, 1900RPM
OA938AP-11/22-3WB
ActiveORION FANS
AXIAL FAN, AC, OA92AP-DUALV SERIES, BALL BEARING, SQUARE, 26CFM, 24DB, 230V, 3W, 1900RPM
Description
General part information
OA938AP-11/22-3WB
Fan Tubeaxial 115 ~ 230VAC Square - 92mm L x 92mm H Ball 26.0 CFM (0.728m³/min) 2 Wire Leads
Technical Specifications
Parameters and characteristics for this part
| Specification | OA938AP-11/22-3WB |
|---|---|
| Air Flow | 26 CFM |
| Approval Agency | cURus, UR, CE, TUV |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Lifetime | 90000 Hrs |
| Material - Blade | PBT, Polybutylene Terephthalate |
| Material - Frame | Aluminum |
| Noise | 24 dB |
| Operating Temperature (Max) | 158 °F |
| Operating Temperature (Min) | -4 °F |
| Power (Watts) | 3 W |
| RPM | 1900 RPM |
| Size / Dimension Height | 92 mm |
| Size / Dimension Length | 92 mm |
| Size / Dimension Shape | Square |
| Static Pressure | 0.1 in H2O |
| Termination | 2 Wire Leads |
| Termination Leads Count | 2 leads |
| Termination Type | Wire Leads |
| Voltage - Rated (Max) | 230 V |
| Voltage - Rated (Min) | 115 VAC |
| Voltage Range (Max) | 240 V |
| Voltage Range (Min) | 100 VAC |
| Width | 38 mm |
