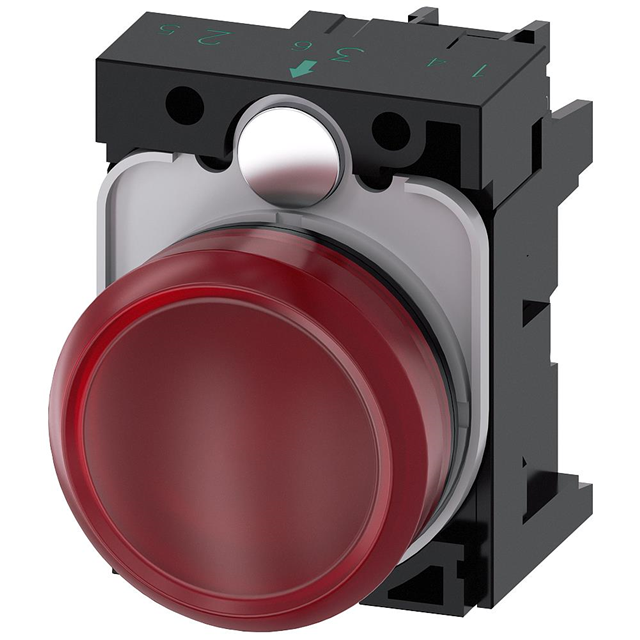

Specification	A6X30142576

Ingress Protection	4X, 3, NEMA 1, IP67, IP66, 4, 13, 3R, 2, IP20, 12, IP69K, IP69
Lamp Color	Red
Lens Color	Red
Lens Diameter	22 mm
Lens Style	Round, Flat Top
Lens Transparency	Diffused
Millicandela Rating (Max)	1120 mcd
Millicandela Rating (Min)	450 mcd
Panel Cutout Dimension	0.88 "
Panel Cutout Shape	Round
Ratings	AC, DC
Termination Style	Screw Terminal
Type	LED
Voltage	24 V

A6X30142 Series

...

Part	Voltage	Millicandela Rating (Max)	Millicandela Rating (Min)	Ratings	Lens Transparency	Ingress Protection	Panel Cutout Dimension	Lens Color	Lamp Color	Lens Diameter	Lens Style	Type	Panel Cutout Shape	Termination Style
Siemens A6X30142659	24 V	710 mcd	280 mcd	AC DC	Diffused	12 13 2 3 3R 4 4X IP20 IP66 IP67 IP69 IP69K NEMA 1	0.88 "	Blue	Blue	22 mm	Flat Top Round	LED	Round	Spring Terminal
Siemens A6X30142650	24 V	710 mcd	280 mcd	AC DC	Diffused	12 13 2 3 3R 4 4X IP20 IP66 IP67 IP69 IP69K NEMA 1	0.88 "	Blue	Blue	22 mm	Flat Top Round	LED	Round	Screw Terminal
Siemens A6X30142163	110 V	1800 mcd	900 mcd	AC	Diffused	12 13 2 3 3R 4 4X IP66 IP67 IP69 IP69K NEMA 1	0.88 "	Green	Green	22 mm	Flat Top Round	LED	Round	Screw Terminal
Siemens A6X30142290	230 V	1400 mcd	900 mcd	AC	Diffused	12 13 2 3 3R 4 4X IP20 IP66 IP67 IP69 IP69K NEMA 1	0.88 "	Yellow	Yellow	22 mm	Flat Top Round	LED	Round	Spring Terminal
Siemens A6X30142272	230 V	1400 mcd	900 mcd	AC	Diffused	12 13 2 3 3R 4 4X IP66 IP67 IP69 IP69K NEMA 1	0.88 "	Amber	Amber	22 mm	Flat Top Round	LED	Round	Screw Terminal
Siemens A6X30142125	110 V	1400 mcd	900 mcd	AC	Diffused	12 13 2 3 3R 4 4X IP20 IP66 IP67 IP69 IP69K NEMA 1	0.88 "	Amber	Amber	22 mm	Flat Top Round	LED	Round	Screw Terminal
Siemens A6X30142964	110 V			AC	Diffused	12 13 2 3 3R 4 4X IP66 IP67 IP69 IP69K NEMA 1	0.88 "	Green	Green	30 mm	Flat Top Round	LED	Round
Siemens A6X30142142	110 V	1400 mcd	900 mcd	AC	Diffused	12 13 2 3 3R 4 4X IP20 IP66 IP67 IP69 IP69K NEMA 1	0.88 "	Yellow	Yellow	22 mm	Flat Top Round	LED	Round	Screw Terminal
Siemens A6X30142698	24 V	1400 mcd	900 mcd	AC DC	Clear	12 13 2 3 3R 4 4X IP20 IP66 IP67 IP69 IP69K NEMA 1	0.88 "	Colorless	Clear	22 mm	Flat Top Round	LED	Round	Spring Terminal
Siemens A6X30142282	230 V	1120 mcd	450 mcd	AC	Diffused	12 13 2 3 3R 4 4X IP20 IP66 IP67 IP69 IP69K NEMA 1	0.88 "	Red	Red	22 mm	Flat Top Round	LED	Round	Spring Terminal
