5131501604

Active

DIALIGHT

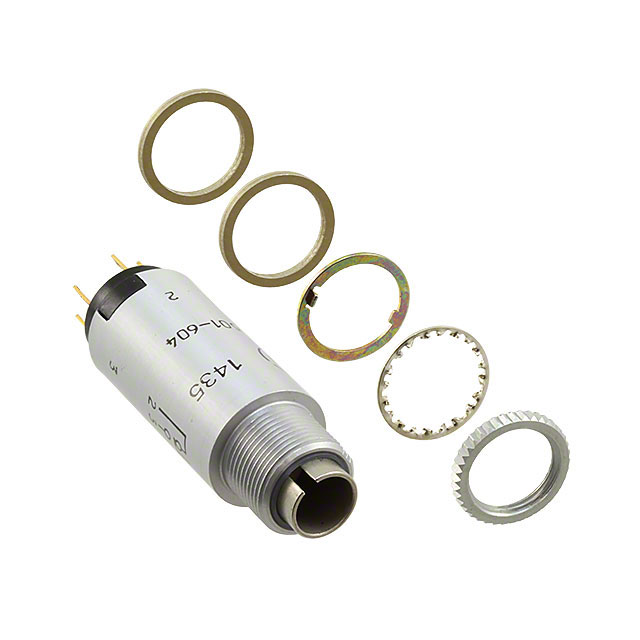

SWITCH PUSHBUTTON DPST 5A 125V

Search across all available documentation for this part.

Active

DIALIGHT

SWITCH PUSHBUTTON DPST 5A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	5131501604

Actuator Marking	No Marking
Actuator Type	Plunger for Cap
Circuit	DPST-NO/NC
Current Rating (Amps)	5 A
Mechanical Life	100000 Cycles
Mounting Type	Panel Mount, Rear
Panel Cutout Dimensions [diameter]	12.7 mm
Switch Function	On-Off, Off-On
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Illuminated, Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

SWITCH PUSHBUTTON DPST 5A 125V

Part	Current Rating (Amps)	Voltage Rating - DC	Switch Function	Circuit	Actuator Type	Mechanical Life	Mounting Type	Actuator Marking	Voltage Rating - AC	Panel Cutout Dimensions [diameter]	Termination Style	Termination Style	Termination Style	Type
DIALIGHT 5131501604	5 A	30 V	Off-On, On-Off	DPST-NO/NC	Plunger for Cap	100000 Cycles	Panel Mount, Rear	No Marking	125 V	12.7 mm	0.11 in	Quick Connect, Solder	2.8 mm	Illuminated, Standard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch DPST-NO/NC Standard, Illuminated Panel Mount, Rear
