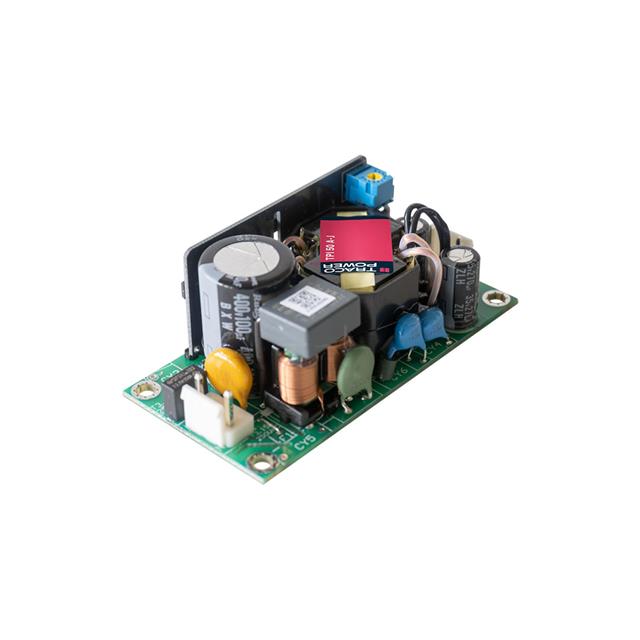

TPI 50-105A-J
ActiveTraco Power
AC/DC CONVERTER 5V 40W
TPI 50-105A-J
ActiveTraco Power
AC/DC CONVERTER 5V 40W
Description
General part information
TPI 50-105A-J
Open Frame AC DC Converters 1 Output 5V 85 ~ 264 VAC, 120 ~ 370 VDC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | TPI 50-105A-J |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE, cURus, cULus, CB |
| Current - Output 1 | 8 A |
| Efficiency | 91 % |
| Features | DC Input Capable, Universal Input, Adjustable Output |
| Minimum Load Required | No |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Power (Watts) | 40 W |
| Size / Dimension Height | 1.3 in |
| Size / Dimension Length | 3 in |
| Size / Dimension Width | 1.5 in |
| Standard Number | 62368-1 |
| Type | Open Frame |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 85 VAC |
| Voltage - Input (DC) Maximum | 370 V |
| Voltage - Input (DC) Minimum | 120 V |
| Voltage - Isolation | 3 kV |
| Voltage - Output 1 | 5 V |
