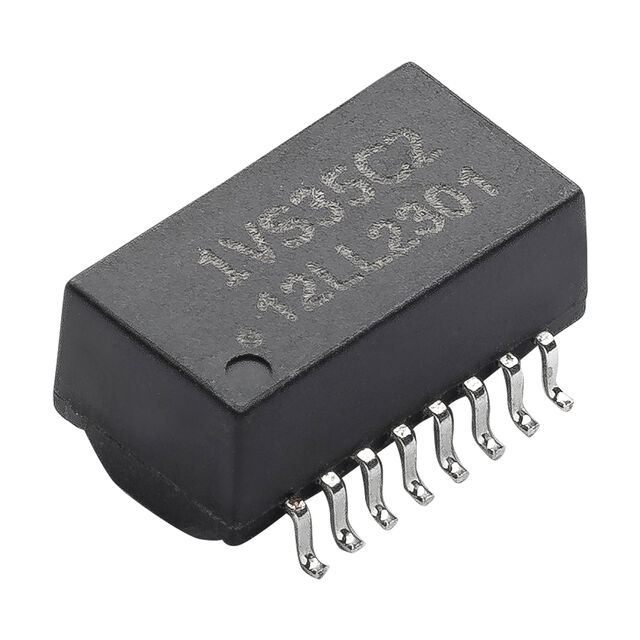

LAN1VSOQ40351C1
ActiveEaton - Electronics Division
MOD TRANS LAN 100B-T 4 PORT
LAN1VSOQ40351C1
ActiveEaton - Electronics Division
MOD TRANS LAN 100B-T 4 PORT
Description
General part information
LAN1VSOQ40351C1
350µH LAN 100 Base-T Pulse Transformer 1CT:1CT Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | LAN1VSOQ40351C1 |
|---|---|
| Height - Seated (Max) | 0.252 in |
| Inductance | 350 µH |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | 0 °C |
| Size / Dimension Length | 1.106 in |
| Size / Dimension Width | 0.476 in |
| Transformer Type | LAN 100 Base-T |
| Turns Ratio - Primary | 1 |
| Turns Ratio - Secondary | 1 |
