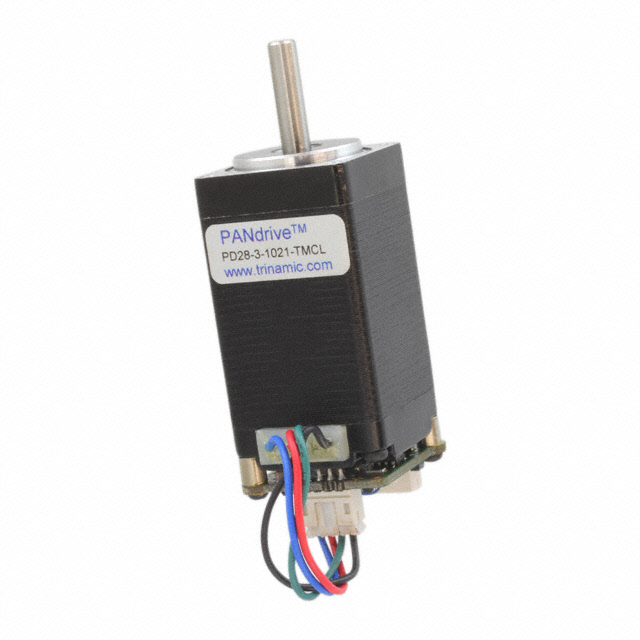

PD28-3-1021-TMCL
ActiveAnalog Devices Inc./Maxim Integrated
STEPPER MOTOR HYBRID BIPOLAR 24V
Deep-Dive with AI
Search across all available documentation for this part.
PD28-3-1021-TMCL
ActiveAnalog Devices Inc./Maxim Integrated
STEPPER MOTOR HYBRID BIPOLAR 24V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | PD28-3-1021-TMCL | PD28 Series |
|---|---|---|
| Coil Type | Bipolar | Bipolar |
| Current Rating (Amps) | 700 mA | 700 mA |
| Diameter - Shaft [diameter] | 0.197 in | 0.197 in |
| Diameter - Shaft [diameter] | 5 mm | 5 mm |
| Features | Flatted Shaft, Integrated Controller | Flatted Shaft, Integrated Controller |
| Length - Shaft and Bearing [x] | 20 mm | 20 mm |
| Length - Shaft and Bearing [x] | 0.787 in | 0.787 in |
| Mounting Hole Spacing | 23 mm | 23 mm |
| Mounting Hole Spacing | 0.906 in | 0.906 in |
| NEMA Frame Size | 11 | 11 |
| Size / Dimension [x] | 28 mm | 28 mm |
| Size / Dimension [x] | 1.1 " | 1.1 " |
| Size / Dimension [y] | 1.1 in | 1.1 in |
| Size / Dimension [y] | 28 mm | 28 mm |
| Step Angle | 1.8 ° | 1.8 ° |
| Steps per Revolution | 200 | 200 |
| Torque - Holding (oz-in / mNm) | 17 oz-in | 8.49 - 17 oz-in |
| Torque - Holding (oz-in / mNm) | 120 mNm | 60 - 120 mNm |
| Type | Hybrid | Hybrid |
| Voltage - Rated | 24 VDC | 24 VDC |
| Weight | 109.77 g | 109.77 g |
| Weight | 0.242 lb | 0.242 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Case | 1 | $ 221.97 | |
| 5 | $ 203.99 | |||
| 10 | $ 196.71 | |||
| 25 | $ 193.14 | |||
PD28 Series
STEPPER MOTOR HYBRID BIPOLAR 24V
| Part | Coil Type | Diameter - Shaft [diameter] | Diameter - Shaft [diameter] | Features | Voltage - Rated | Weight | Weight | Mounting Hole Spacing | Mounting Hole Spacing | Step Angle | Steps per Revolution | Type | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Current Rating (Amps) | NEMA Frame Size | Torque - Holding (oz-in / mNm) | Torque - Holding (oz-in / mNm) | Length - Shaft and Bearing [x] | Length - Shaft and Bearing [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated PD28-1-1021-TMCL | Bipolar | 0.197 in | 5 mm | Flatted Shaft, Integrated Controller | 24 VDC | 109.77 g | 0.242 lb | 23 mm | 0.906 in | 1.8 ° | 200 | Hybrid | 28 mm | 1.1 " | 1.1 in | 28 mm | 700 mA | 11 | 8.49 oz-in | 60 mNm | 20 mm | 0.787 in |
Analog Devices Inc./Maxim Integrated PD28-3-1021-TMCL | Bipolar | 0.197 in | 5 mm | Flatted Shaft, Integrated Controller | 24 VDC | 109.77 g | 0.242 lb | 23 mm | 0.906 in | 1.8 ° | 200 | Hybrid | 28 mm | 1.1 " | 1.1 in | 28 mm | 700 mA | 11 | 17 oz-in | 120 mNm | 20 mm | 0.787 in |
Description
General part information
PD28 Series
Bipolar Stepper Motor Hybrid Frame Size 11 200.0 Step 700 mA 24VDC
Documents
Technical documentation and resources
No documents available
