CBD5W5F0S5000
ActiveMcGill Microwave Systems
COMBO-D
CBD5W5F0S5000
ActiveMcGill Microwave Systems
COMBO-D
Description
General part information

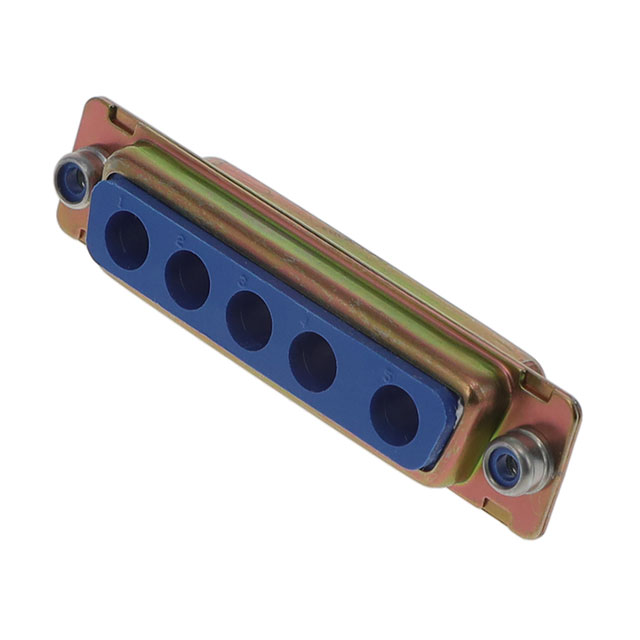

CBD5W5F0S5000
Receptacle for Female Contacts Housing D-Sub, Combo Connector 5 (Power) Position
Technical Specifications
Parameters and characteristics for this part
| Specification | CBD5W5F0S5000 |
|---|---|
| Color | Blue |
| Connector Layout | DB, B |
| Connector Style | Combo, D-Sub |
| Connector Type | Receptacle for Female Contacts |
| Contact Type | Power |
| Dielectric Material | Glass Filled, Polyester |
| Features | Shielded |
| Flange Feature | Board Side (4-40) |
| Ingress Protection Description | Dust Tight, Water Resistant, Waterproof |
| Ingress Protection IP Rating | IP67, IP65 |
| Mating Cycles | 500 cycles |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 5 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Part Code | 5W5 |
| Position Types | Power |
| Primary Material | Metal |
| Shell Material, Finish | Clear Chromate Plated Zinc, Steel |
| Shell Size | 3 |
