Description
General part information

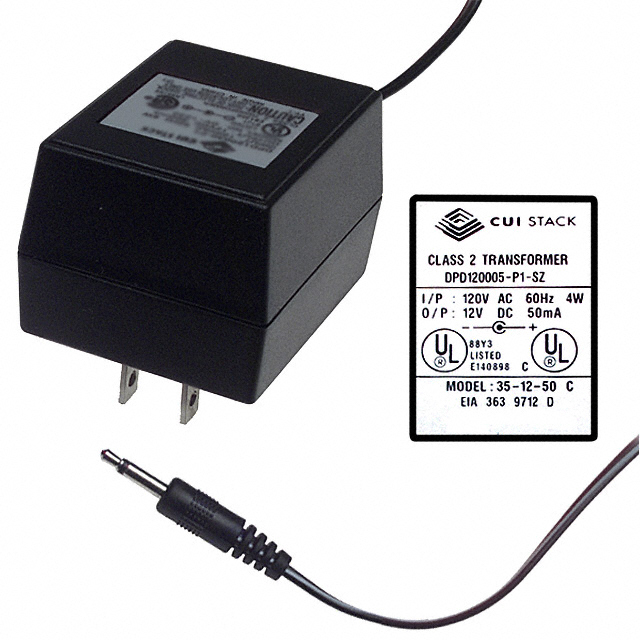

DPD120005-P1P-SZ
12V 600 mW AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
Technical Specifications
Parameters and characteristics for this part
| Specification | DPD120005-P1P-SZ |
|---|---|
| Applications | ITE (Commercial) |
| Cord Length | 72 in |
| Current - Output (Max) | 50 mA |
| Form | Wall Mount (Class II) |
| Input Connector | NEMA 1-15P |
| Input Type | Fixed Blade |
| Output Connector | Phono Plug |
| Output Connector Length | 14.5 mm |
| Output Connector Outer Diameter | 3.5 mm |
| Polarization | Negative Sleeve, Positive Tip |
| Power (Watts) | 600 mW |
| Region Utilized | North America |
| Size / Dimension Height | 1.46 in |
| Size / Dimension Length | 2.15 in |
| Size / Dimension Width | 1.67 in |
| Voltage - Input | 120 VAC |
| Voltage - Output | 12 V |
