M24308/25-6Z
ActiveMcGill Microwave Systems

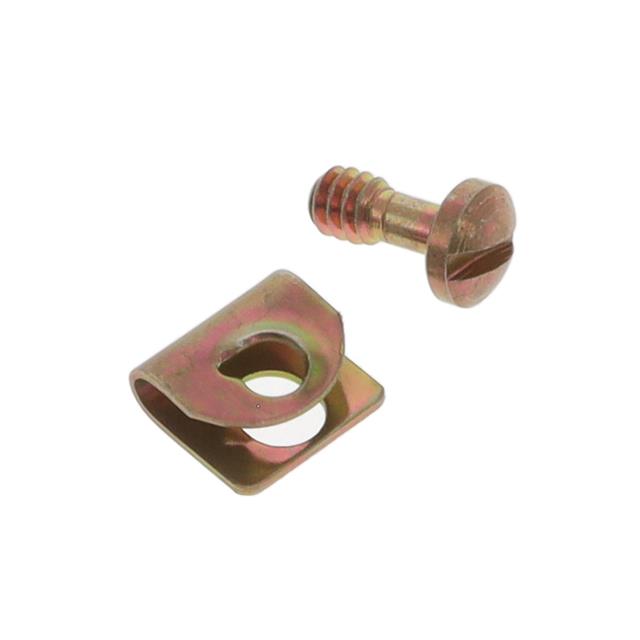

D SUB JACK SCREW, 6.1MM, 4-40 UNC-2A ROHS COMPLIANT: NO
M24308/25-6Z
ActiveMcGill Microwave Systems
D SUB JACK SCREW, 6.1MM, 4-40 UNC-2A ROHS COMPLIANT: NO
Description
General part information
M24308/25-6Z
Locking Post For D-Sub Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | M24308/25-6Z |
|---|---|
| Accessory Type | Locking Post |
| Features | Clip |
| For Use With/Related Products | D-Sub Connectors |
| Length - Below Head | 0.24 in |
| Length - Threaded Portion Below Head | 0.11 in |
| Thread Size (Max) | 40 mm |
| Thread Size (Min) | 4 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
