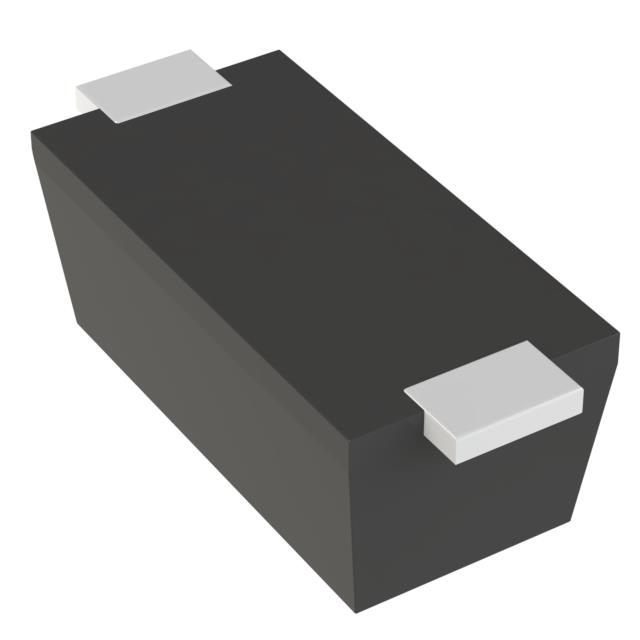

1N4148W-AQ

Active

Diotec Semiconductor

DIODE GEN PURP 75V 150MA SOD123F

Search across all available documentation for this part.

Active

Diotec Semiconductor

DIODE GEN PURP 75V 150MA SOD123F

Technical Specifications

Parameters and characteristics for this part

Specification	1N4148W-AQ

Capacitance @ Vr, F	2 pF
Current - Average Rectified (Io)	150 mA
Current - Reverse Leakage @ Vr	1 µA
Grade	Automotive
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	SOD-123F
Qualification	AEC-Q101
Reverse Recovery Time (trr)	4 ns
Speed	Any Speed
Speed	200 mA
Supplier Device Package	SOD-123F
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	75 V
Voltage - Forward (Vf) (Max) @ If [Max]	1.25 V

DIODE GEN PURP 75V 150MA SOD123F

Part	Reverse Recovery Time (trr)	Voltage - DC Reverse (Vr) (Max) [Max]	Speed	Speed	Technology	Grade	Package / Case	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Capacitance @ Vr, F	Current - Reverse Leakage @ Vr	Current - Average Rectified (Io)	Supplier Device Package	Mounting Type	Voltage - Forward (Vf) (Max) @ If [Max]	Qualification
Diotec Semiconductor 1N4148W-AQ	4 ns	75 V	Any Speed	200 mA	Standard	Automotive	SOD-123F	150 °C	-55 °C	2 pF	1 µA	150 mA	SOD-123F	Surface Mount	1.25 V	AEC-Q101

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 75 V 150mA Surface Mount SOD-123F
