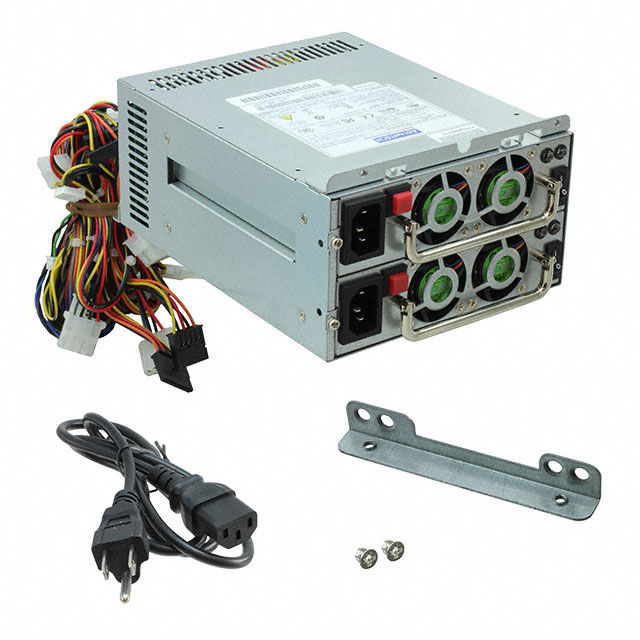

RPS8-350ATX-XE
ObsoleteAdvantech Corporation
AC/DC CNVT 3.3V 5V 12V -5V -12V
RPS8-350ATX-XE
ObsoleteAdvantech Corporation
AC/DC CNVT 3.3V 5V 12V -5V -12V
Description
General part information
RPS8-350ATX-XE
AC DC Converters 5 Output 3.3V 5V 12V -5V 100 ~ 240 VAC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | RPS8-350ATX-XE |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CCC, UL, TUV, CE, FCC, KC, CB |
| Current - Output 1 | 20 A |
| Current - Output 2 | 20 A |
| Current - Output 3 | 29 A |
| Current - Output 4 | 300 mA |
| Current - Output 5 | 500 mA |
| Efficiency | 88 % |
| Features | PFC, PMBus™, Standby Output |
| Mounting Type | Chassis Mount |
| Number of Outputs | 5 |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | 0 °C |
| Power (Watts) | 522 W |
| Size / Dimension Height | 7.48 in |
| Size / Dimension Length | 5.91 in |
| Size / Dimension Width | 3.31 in |
| Voltage - Input (AC) Maximum | 240 VAC |
| Voltage - Input (AC) Minimum | 100 VAC |
| Voltage - Output 1 | 3.3 V |
| Voltage - Output 2 | 5 V |
| Voltage - Output 3 | 12 V |
| Voltage - Output 4 | -5 V |
| Voltage - Output 5 | -12 V |
