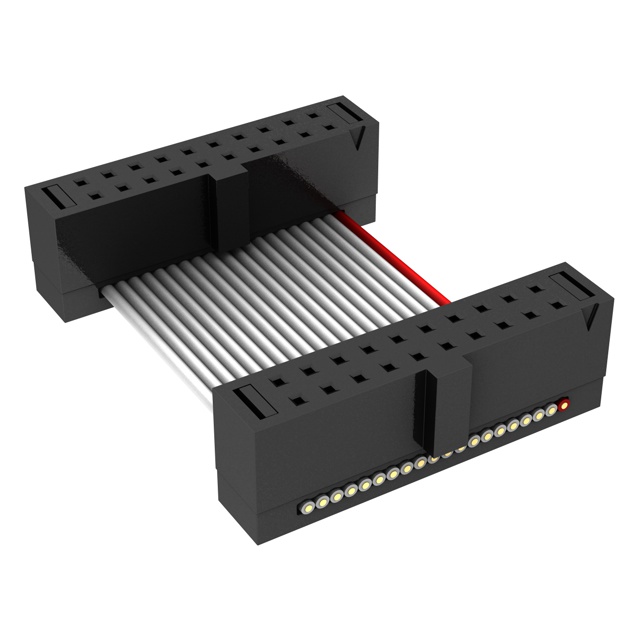

FFSD-10-D-02.65-01-N

Active

Samtec Inc.

.050 X .050 C.L. FEMALE IDC ASSE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FFSD-10-D-02.65-01-N

Active

Samtec Inc.

.050 X .050 C.L. FEMALE IDC ASSE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FFSD-10-D-02.65-01-N

Cable Termination	IDC
Connector Type	Socket to Socket
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Polarizing Key
Length	67.31 mm
Length	2.65 "
Length	0.221 ft
Number of Positions	20
Number of Rows	2
Pitch - Cable	0.64 mm
Pitch - Cable [x]	0.025 in
Pitch - Connector	0.05 in
Pitch - Connector	1.27 mm
Shielding	Unshielded

FFSD-10 Series

...

Part	Contact Finish Thickness	Contact Finish Thickness	Length [x]	Length [x]	Pitch - Cable [x]	Pitch - Cable	Number of Positions	Connector Type	Features	Pitch - Connector	Pitch - Connector	Cable Termination	Shielding	Contact Finish	Number of Rows	Length [x]	Length	Length	Length
Samtec Inc. FFSD-10-D-30.00-01-N-R	10 Áin	0.25 Ám	762 mm	30 "	0.025 in	0.64 mm	20	Socket to Socket Reversed	Polarizing Key	0.05 in	1.27 mm	IDC	Unshielded	Gold	2
Samtec Inc. FFSD-10-D-10.45-01-N	10 Áin	0.25 Ám	265.43 mm	0.871 ft	0.025 in	0.64 mm	20	Socket to Socket	Polarizing Key	0.05 in	1.27 mm	IDC	Unshielded	Gold	2	10.45 in
Samtec Inc. FFSD-10-S-05.00-01-N-RW	10 Áin	0.25 Ám	127 mm	0.417 '	0.025 in	0.64 mm	20	Socket to Cable	Polarizing Key Reverse Wiring	0.05 in	1.27 mm	IDC	Unshielded	Gold	2	5 "
Samtec Inc. FFSD-10-D-50.00-01-N-R	10 Áin	0.25 Ám			0.025 in	0.64 mm	20	Socket to Socket Reversed	Polarizing Key Reverse Wiring	0.05 in	1.27 mm	IDC	Unshielded	Gold	2		1270 mm	4.17 '
Samtec Inc. FFSD-10-S-12.00-01-S-N	30 Áin	0.76 Ám			0.025 in	0.64 mm	20	Socket to Cable	Polarizing Key	0.05 in	1.27 mm	IDC	Unshielded	Gold	2		304.8 mm	1 ft
Samtec Inc. FFSD-10-D-02.65-01-N	10 Áin	0.25 Ám			0.025 in	0.64 mm	20	Socket to Socket	Polarizing Key	0.05 in	1.27 mm	IDC	Unshielded	Gold	2		67.31 mm	0.221 ft	2.65 "
Samtec Inc. FFSD-10-S-02.00-01-F-N	3 Áin	0.076 Ám			0.025 in	0.64 mm	20	Socket to Cable	Polarizing Key	0.05 in	1.27 mm	IDC	Unshielded	Gold	2		50.8 mm	0.167 '	2 "
Samtec Inc. FFSD-10-D-07.88-01-N-SR	10 Áin	0.25 Ám			0.025 in	0.64 mm	20	Socket to Socket	Polarizing Key Strain Relief	0.05 in	1.27 mm	IDC	Unshielded	Gold	2		200.15 mm	0.657 ft	7.88 in
Samtec Inc. FFSD-10-D-07.88-01-N	10 Áin	0.25 Ám			0.025 in	0.64 mm	20	Socket to Socket	Polarizing Key	0.05 in	1.27 mm	IDC	Unshielded	Gold	2		200.15 mm	0.657 ft	7.88 in
Samtec Inc. FFSD-10-D-01.50-01-F-N	3 Áin	0.076 Ám			0.025 in	0.64 mm	20	Socket to Socket	Polarizing Key	0.05 in	1.27 mm	IDC	Unshielded	Gold	2		38.1 mm	0.125 '	1.5 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 22.35

Description

General part information

FFSD-10 Series

20 Position Cable Assembly Rectangular Socket to Socket 0.221' (67.31mm, 2.65")
