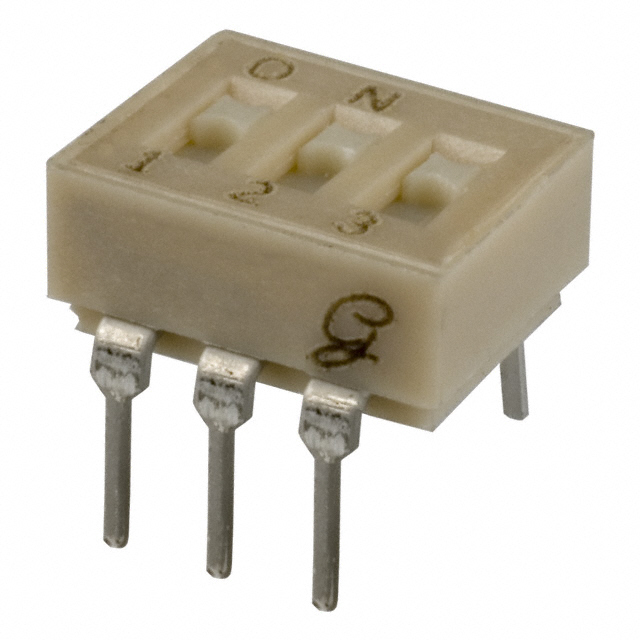

90B03ST

Active

Grayhill Inc.

SWITCH SLIDE DIP SPST 0.025A 24V

Search across all available documentation for this part.

Active

Grayhill Inc.

SWITCH SLIDE DIP SPST 0.025A 24V

Technical Specifications

Parameters and characteristics for this part

SWITCH SLIDE DIP SPST 0.025A 24V

Part	Current Rating (Amps)	Washable	Mounting Type	Pitch [x]	Pitch	Pitch [x]	Voltage Rating	Actuator Level	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Features	Length	Length	Mechanical Life	Contact Material	Termination Style	Body Material	Contact Finish	Electrical Life	Circuit
Grayhill Inc. 90B03ST	25 mA		Through Hole	0.1 in	Full	2.54 mm	24 VDC	Flush, Recessed	85 °C	-40 °C	Slide (Standard)	Tape Seal	9.4 mm	0.37 in	2000 Cycles	Copper Alloy	PC Pin	Thermoplastic	Gold	2000 Steps	SPST

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Dip Switch SPST 3 Position Through Hole Slide (Standard) Actuator 25mA 24VDC
