Description
General part information

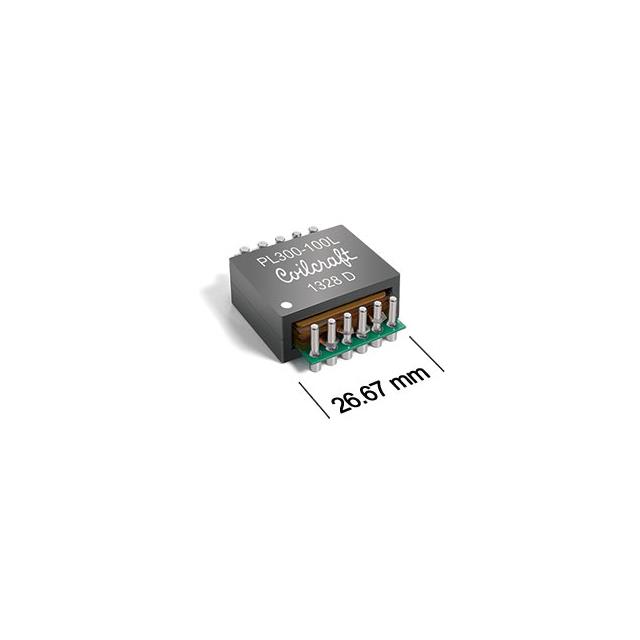

PL300-100L
PWR XFMR 300W CHAS MT
Technical Specifications
Parameters and characteristics for this part
| Specification | PL300-100L |
|---|---|
| Center Tap | Yes |
| Height - Seated (Max) | 10.4 mm |
| Mounting Type | Chassis Mount |
| Power - Max | 300 W |
| Primary Winding(s) | Dual |
| Secondary Winding(s) | Multiple Taps, Single |
| Size / Dimension Length | 29.47 mm |
| Size / Dimension Width | 26.67 mm |
| Termination Style | Terminal Block |
| Voltage - Isolation | 1500 Vrns |
| Voltage - Primary | 48 V |
