ER14505J-3PF AA
ActiveJauch Quartz
BATT LI-SOCI2 AA ER14505 3.6V
ER14505J-3PF AA
ActiveJauch Quartz
BATT LI-SOCI2 AA ER14505 3.6V
Description
General part information

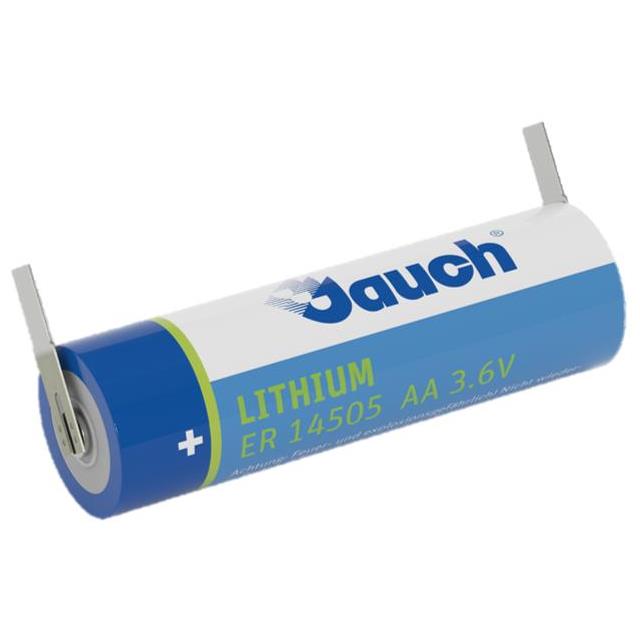

ER14505J-3PF AA
AA Lithium 3.6 V Battery Non-Rechargeable (Primary)
Technical Specifications
Parameters and characteristics for this part
| Specification | ER14505J-3PF AA |
|---|---|
| Battery Cell Size | AA |
| Battery Chemistry | Lithium, Lithium Thionyl Chloride |
| Capacity (Charge) | 2.6 Ah |
| Discharge Rate (Current) | 100 mA |
| Shelf Life | 84 Months |
| Shelf Life Start | Date of Manufacture |
| Size / Dimension Diameter | 0.57 in |
| Size / Dimension Height | 2 in |
| Storage/Refrigeration Temperature | 86 °F |
| Termination Style | Button Top (Extending), Solder Tab |
| Voltage - Rated | 3.6 VDC |
| Weight | 19.09 g |
