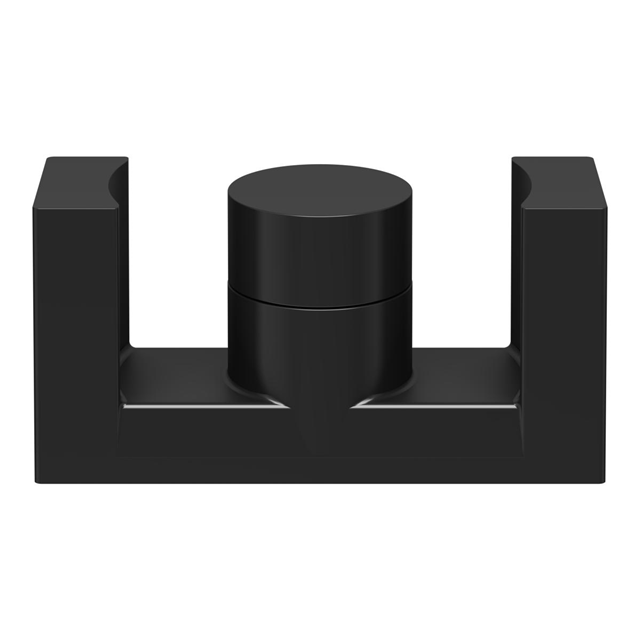

Specification	B66363Q0150K187

Core Factor (ΣI/A) mm⁻¹	0.74 mm⁻¹
Core Type	ETD
Effective Area (Ae)	125 mm²
Effective Length (le)	92.2 mm
Effective Magnetic Volume (Ve)	11500 mm³
Finish	Uncoated
Gap	Distributed Gapped
Height	0.504 in
Inductance Factor (Al)	150 nH
Length	1.531 in
Material	N87
Minimum Core Cross Section (Amin) (mm²)	123 mm²
Package Height	13 mm
Package Length	39 mm
Package Name	ETD
Package Width	20 mm
Tolerance	10 %
Width	0.787 "
