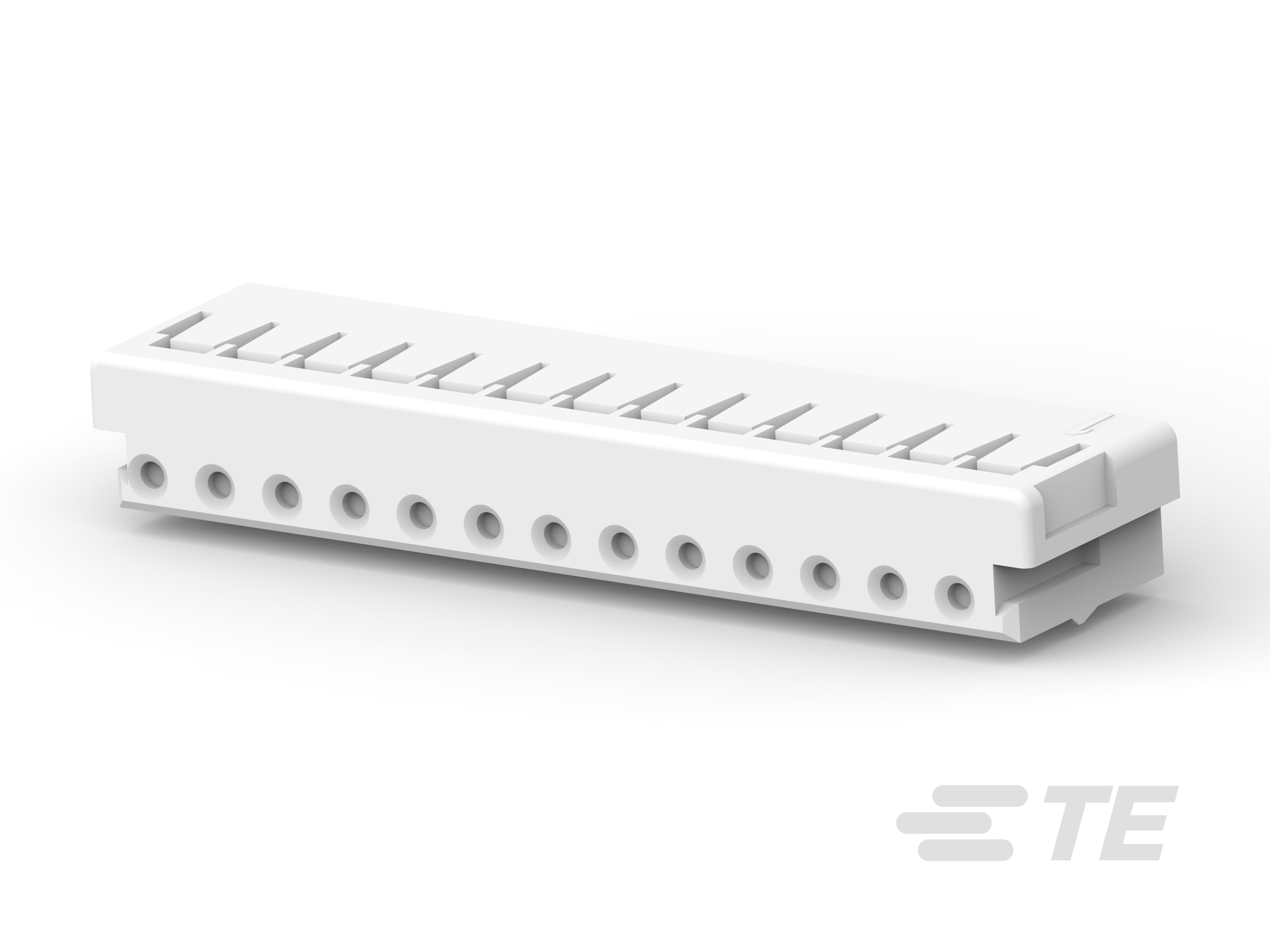

Specification	1-179228-3

Color	Natural
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Insulation Material	Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	13
Number of Rows	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-30 °C
Pitch	0.079 in

179228 Series

Part	Note	Mounting Type	Contact Termination	Connector Type	Number of Positions	Pitch	Insulation Material	Color	Contact Type	Number of Rows	Operating Temperature (Min)	Operating Temperature (Max)
TE Connectivity AMP Connectors 179228-9	Contacts Not Included	Free Hanging (In-Line)	Crimp	Receptacle	9	0.079 in	Nylon 6/6 Polyamide (PA66)	Natural	Female Socket	1	-30 °C	105 °C
TE Connectivity AMP Connectors 4-179228-2	Contacts Not Included	Free Hanging (In-Line)	Crimp	Receptacle	2	0.079 in	Nylon 6/6 Polyamide (PA66)	Yellow	Female Socket	1	-30 °C	105 °C
TE Connectivity AMP Connectors 6-179228-4	Contacts Not Included	Free Hanging (In-Line)	Crimp	Receptacle	4	0.079 in	Nylon 6/6 Polyamide (PA66)	Black	Female Socket	1	-30 °C	105 °C
TE Connectivity AMP Connectors 6-179228-8	Contacts Not Included	Free Hanging (In-Line)	Crimp	Receptacle	8	0.079 in	Nylon 6/6 Polyamide (PA66)	Black	Female Socket	1	-30 °C	105 °C
TE Connectivity AMP Connectors 4-179228-4	Contacts Not Included	Free Hanging (In-Line)	Crimp	Receptacle	4	0.079 in	Nylon 6/6 Polyamide (PA66)	Yellow	Female Socket	1	-30 °C	105 °C
TE Connectivity AMP Connectors 2-179228-3	Contacts Not Included	Free Hanging (In-Line)	Crimp	Receptacle	3	0.079 in	Nylon 6/6 Polyamide (PA66)	Blue	Female Socket	1	-30 °C	105 °C
TE Connectivity AMP Connectors 179228-8	Contacts Not Included	Free Hanging (In-Line)	Crimp	Receptacle	8	0.079 in	Nylon 6/6 Polyamide (PA66)	Natural	Female Socket	1	-30 °C	105 °C
TE Connectivity AMP Connectors 179228-7	Contacts Not Included	Free Hanging (In-Line)	Crimp	Receptacle	7	0.079 in	Nylon 6/6 Polyamide (PA66)	Natural	Female Socket	1	-30 °C	105 °C
TE Connectivity AMP Connectors 3-179228-4	Contacts Not Included	Free Hanging (In-Line)	Crimp	Receptacle	14	0.079 in	Nylon 6/6 Polyamide (PA66)	Blue	Female Socket	1	-30 °C	105 °C
TE Connectivity AMP Connectors 6-179228-5	Contacts Not Included	Free Hanging (In-Line)	Crimp	Receptacle	5	0.079 in	Nylon 6/6 Polyamide (PA66)	Black	Female Socket	1	-30 °C	105 °C
