0800501:0002

Active

Phoenix Contact

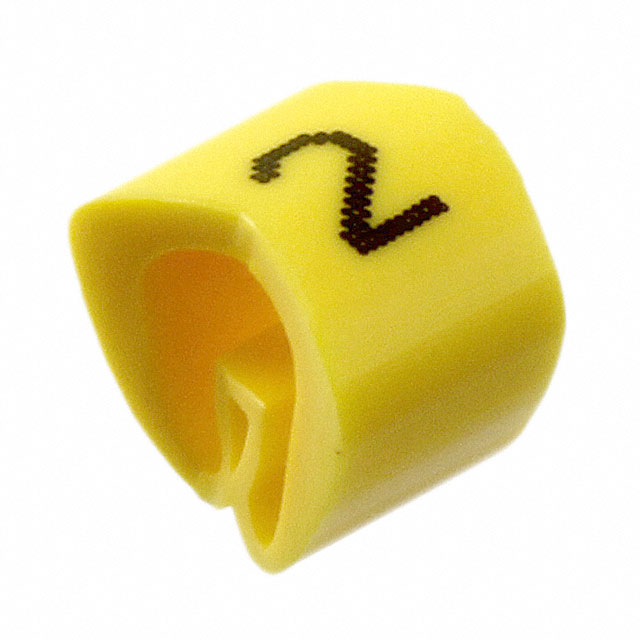

WIRE MARKER SLIP-ON YELLOW

Search across all available documentation for this part.

Active

Phoenix Contact

WIRE MARKER SLIP-ON YELLOW

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Wire Marker, Slip-On Yellow

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	0800501:0002	0800501 Series

Cable Diameter [Max] [diameter]	0.236 in	0.236 in
Cable Diameter [Max] [diameter]	6 mm	6 mm
Cable Diameter [Min] [diameter]	0.118 in	0.118 in
Cable Diameter [Min] [diameter]	3 mm	3 mm
Color	Yellow	Yellow
Legend	2	8, 9, 2, 1, 4
Legend	-	0
Material	-	Ethylene Vinyl Acetate Copolymer (EVA), Halogen Free
Operating Temperature	-	-45 °C
Operating Temperature	-	70 °C
Type	Wire Marker, Slip-On	Wire Marker, Slip-On

WIRE MARKER SLIP-ON YELLOW

Part	Legend	Type	Cable Diameter [Max] [diameter]	Cable Diameter [Min] [diameter]	Cable Diameter [Min] [diameter]	Cable Diameter [Max] [diameter]	Material	Operating Temperature [Min]	Operating Temperature [Max]	Color	Legend
Phoenix Contact 0800501:0000	0	Wire Marker, Slip-On	0.236 in	0.118 in	3 mm	6 mm	Ethylene Vinyl Acetate Copolymer (EVA), Halogen Free	-45 °C	70 °C	Yellow
Phoenix Contact 0800501:0008		Wire Marker, Slip-On	0.236 in	0.118 in	3 mm	6 mm	Ethylene Vinyl Acetate Copolymer (EVA), Halogen Free	-45 °C	70 °C	Yellow	8
Phoenix Contact 0800501:0009		Wire Marker, Slip-On	0.236 in	0.118 in	3 mm	6 mm	Ethylene Vinyl Acetate Copolymer (EVA), Halogen Free	-45 °C	70 °C	Yellow	9
Phoenix Contact 0800501:0002		Wire Marker, Slip-On	0.236 in	0.118 in	3 mm	6 mm				Yellow	2
Phoenix Contact 0800501:0001		Wire Marker, Slip-On	0.236 in	0.118 in	3 mm	6 mm				Yellow	1
Phoenix Contact 0800501:0004		Wire Marker, Slip-On	0.236 in	0.118 in	3 mm	6 mm	Ethylene Vinyl Acetate Copolymer (EVA), Halogen Free	-45 °C	70 °C	Yellow	4
