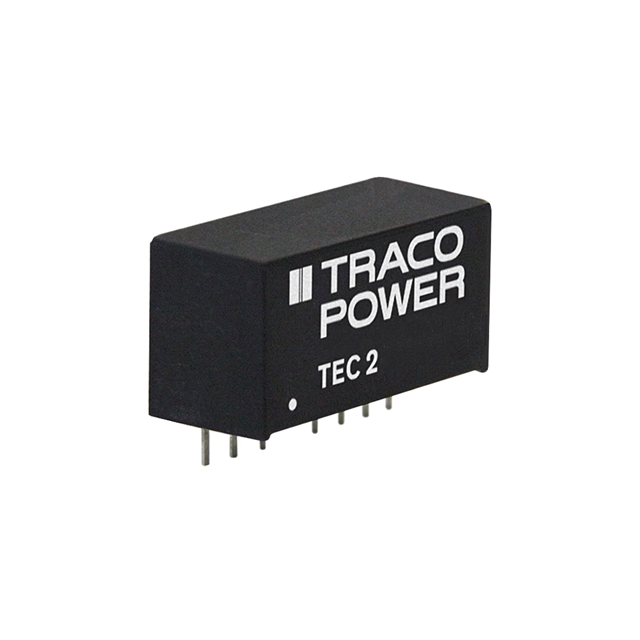

TEC 2-2411
ActiveTraco Power
DC DC CONVERTER 5V 2W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TEC 2-2411
ActiveTraco Power
DC DC CONVERTER 5V 2W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TEC 2-2411 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 400 mA |
| Efficiency | 83 % |
| Features | Remote On/Off, SCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 95 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 8-SIP Module |
| Package / Case | 7 Leads |
| Power (Watts) | 2 W |
| Size / Dimension [x] | 0.86 in |
| Size / Dimension [x] | 21.8 mm |
| Size / Dimension [y] | 0.36 " |
| Size / Dimension [y] | 9.1 mm |
| Size / Dimension [z] | 11.2 mm |
| Size / Dimension [z] | 0.44 " |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 36 V |
| Voltage - Input (Min) [Min] | 18 V |
| Voltage - Isolation | 1.6 kV |
| Voltage - Output 1 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 11.15 | |
| 10 | $ 10.25 | |||
| 25 | $ 9.91 | |||
| 50 | $ 9.66 | |||
| 100 | $ 9.42 | |||
| 250 | $ 9.11 | |||
| 500 | $ 8.88 | |||
Description
General part information
TEC 2-2411
Isolated Module DC DC Converter 1 Output 5V 400mA 18V - 36V Input
