Description
General part information
09152192703

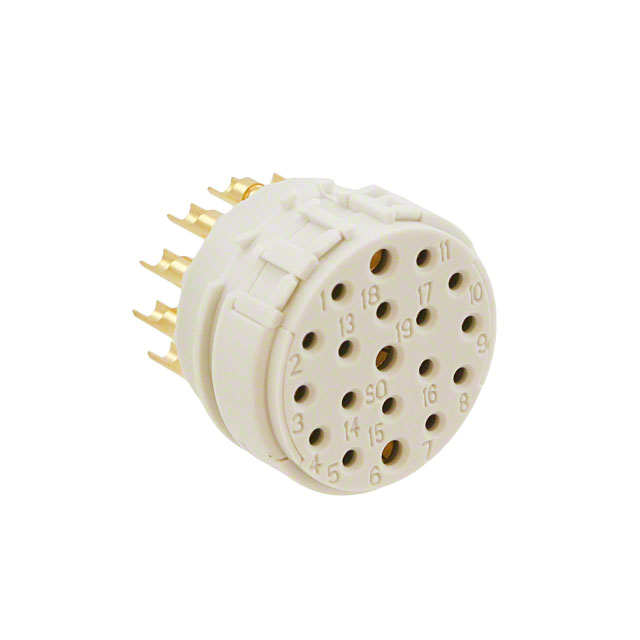

19 Position Circular Connector Insert, Female Sockets Solder Cup
Technical Specifications
Parameters and characteristics for this part
| Specification | 09152192703 |
|---|---|
| Connector Type | Female Sockets, Insert |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating Options | 7A, 10A |
| Features | Requires Shell, Insert Only |
| Insert Material | PBT, Polybutylene Terephthalate |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions | 19 |
| Operating Temperature (Max) | 115 °C |
| Operating Temperature (Min) | -40 °C |
| Shielding | Unshielded |
| Termination | Solder Cup |
