FWA020024B-10A

Active

Inventus Power

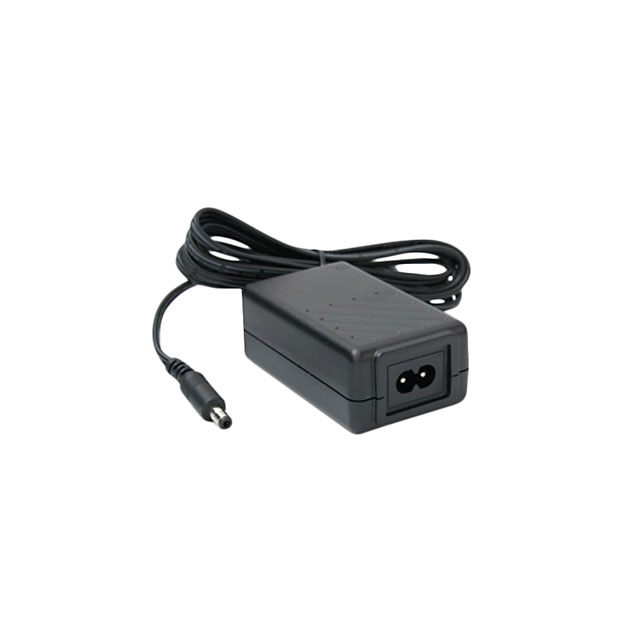

AC/DC DESKTOP ADAPTER 24V 20W

Search across all available documentation for this part.

Active

Inventus Power

AC/DC DESKTOP ADAPTER 24V 20W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	80	$ 16.49

General part information

24V 20 W AC/DC External Desktop (Class II) Adapter Cord (Sold Separately) Input

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	FWA020024B-10A	FWA020024 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CB, CE, cTUVus	CB, CE, cTUVus, TUV, GS
Cord Length	1.22 m	1.22 m
Cord Length	48 in	48 in
Current - Output (Max) [Max]	840 mA	840 mA
Efficiency	Level VI	Level VI
Form	Desktop (Class II)	Desktop (Class II), Desktop (Class I)
Input Connector	IEC 320-C8	IEC 320-C8, IEC 320-C6
Input Type	Cord	Cord
No Load Power Consumption	300 mW	300 mW
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	0 °C	0 °C
Output Connector	Barrel Plug	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.5 mm	2.5 - 5.5 mm
Output Connector [x]	9.5 mm	9.5 mm
Polarization	Positive Center	Positive Center
Power (Watts)	20 W	20 W
Region Utilized	International	International
Size / Dimension [x]	87.7 mm	87.7 mm
Size / Dimension [x]	3.45 in	3.45 in
Size / Dimension [y]	2.04 in	2.04 in
Size / Dimension [y]	51.8 mm	51.8 mm
Size / Dimension [z]	33 mm	33 mm
Size / Dimension [z]	1.3 "	1.3 "
Voltage - Output	24 V	24 V
Weight	136.08 g	136.08 g
Weight	0.3 lb	0.3 lb

AC/DC DESKTOP ADAPTER 24V 20W

Part	Operating Temperature [Max]	Operating Temperature [Min]	Form	Applications	Efficiency	Output Connector [diameter]	Output Connector [x]	Output Connector	Cord Length	Cord Length	Approval Agency	Weight	Weight	Voltage - Output	No Load Power Consumption	Input Connector	Input Type	Current - Output (Max) [Max]	Power (Watts)	Region Utilized	Polarization	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]
Inventus Power FWA020024B-10A	60 °C	0 °C	Desktop (Class II)	ITE (Commercial)	Level VI	2.5 mm, 5.5 mm	9.5 mm	Barrel Plug	1.22 m	48 in	CB, CE, cTUVus	136.08 g	0.3 lb	24 V	300 mW	IEC 320-C8	Cord	840 mA	20 W	International	Positive Center	33 mm	2.04 in	87.7 mm	3.45 in	51.8 mm	1.3 "
Inventus Power FWA020024A-10A	60 °C	0 °C	Desktop (Class I)	ITE (Commercial)	Level VI	2.5 mm, 5.5 mm	9.5 mm	Barrel Plug	1.22 m	48 in	CB, CE, GS, TUV	136.08 g	0.3 lb	24 V	300 mW	IEC 320-C6	Cord	840 mA	20 W	International	Positive Center	33 mm	2.04 in	87.7 mm	3.45 in	51.8 mm	1.3 "
