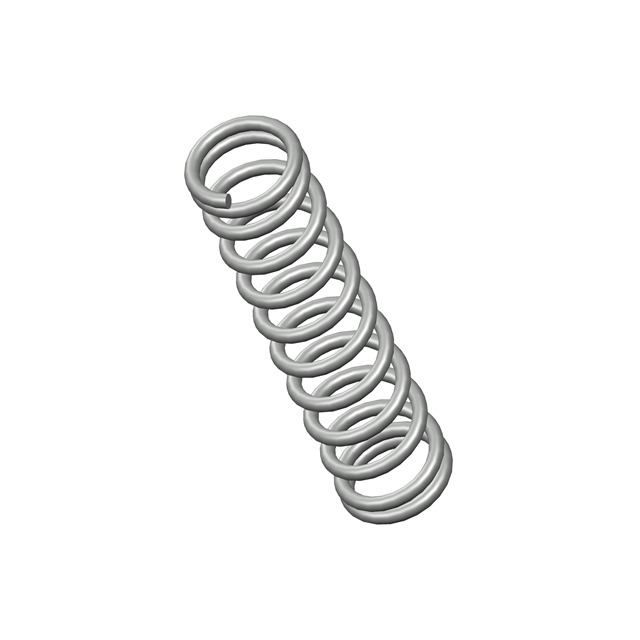

3612CS
ActiveCentury Spring Corp
COMP MUSIC WIRE 0.266" 1.160"
3612CS
ActiveCentury Spring Corp
COMP MUSIC WIRE 0.266" 1.160"
Description
General part information
3612CS
COMP MUSIC WIRE 0.266" 1.160"
Technical Specifications
Parameters and characteristics for this part
| Specification | 3612CS |
|---|---|
| Diameter - Inside | 0.198 in |
| Diameter - Outside | 0.266 in |
| End Style | Closed |
| Finish | Zinc |
| Free Length | 1.16 in |
| Material | Music Wire |
| Rate (lbs/in) | 16 lbs/in |
| Type | Compression |
| Wire Diameter | 0.034 in |
