3241100
ActivePhoenix Contact

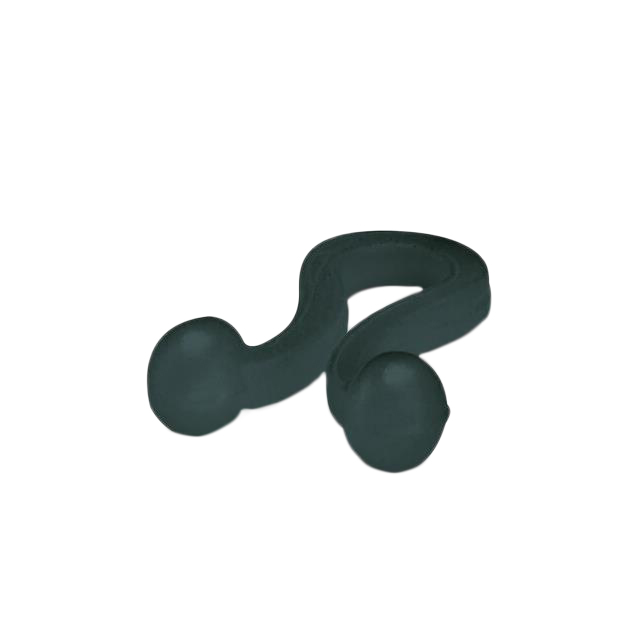

TWIST LOCK BLACK 0.9"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3241100
ActivePhoenix Contact
TWIST LOCK BLACK 0.9"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 3241100 | WG-D HF Series |
|---|---|---|
| Bundle Diameter [diameter] | 0.3 in | 0.3 - 0.8 in |
| Bundle Diameter [diameter] | 7.6 mm | 7.6 - 20.3 mm |
| Color | Black | Black, Transparent |
| Features | Halogen Free | Halogen Free |
| Length - Actual [x] | 22.9 mm | 22.9 - 39.4 mm |
| Length - Actual [x] | 0.075 ft | 0.075 - 0.129 ft |
| Length - Actual [x] | 0.9 in | 0.9 - 1.55 in |
| Length - Approximate | 1 in | 1 - 1.25 in |
| Length - Approximate | - | 1.5 in |
| Material | Polyamide (PA66), Nylon 6/6 | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Width [y] | 7.59 mm | 7.59 - 20.3 mm |
| Width [y] | 0.299 in | 0.299 - 0.799 in |
| Wire/Cable Tie Type | Twist Lock | Twist Lock |
WG-D HF Series
TWIST LOCK BLACK 0.9"
| Part | Color | Length - Approximate | Length - Actual [x] | Length - Actual [x] | Length - Actual [x] | Material | Mounting Type | Width [y] | Width [y] | Bundle Diameter [diameter] | Bundle Diameter [diameter] | Features | Wire/Cable Tie Type | Length - Approximate [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 3241100 | Black | 1 in | 22.9 mm | 0.075 ft | 0.9 in | Polyamide (PA66), Nylon 6/6 | Free Hanging (In-Line) | 7.59 mm | 0.299 in | 0.3 in | 7.6 mm | Halogen Free | Twist Lock | |
Phoenix Contact 3241108 | Black | 39.4 mm | 0.129 ' | 1.55 " | Polyamide (PA66), Nylon 6/6 | Free Hanging (In-Line) | 20.3 mm | 0.799 in | 0.8 in | 20.3 mm | Halogen Free | Twist Lock | 1.5 in | |
Phoenix Contact 3241107 | Transparent | 39.4 mm | 0.129 ' | 1.55 " | Polyamide (PA66), Nylon 6/6 | Free Hanging (In-Line) | 20.3 mm | 0.799 in | 0.8 in | 20.3 mm | Halogen Free | Twist Lock | 1.5 in | |
Phoenix Contact 3241105 | Transparent | 1.25 in | 34.5 mm | 0.113 ft | 1.36 in | Polyamide (PA66), Nylon 6/6 | Free Hanging (In-Line) | 16 mm | 0.63 " | 0.63 in | 16 mm | Halogen Free | Twist Lock | |
Phoenix Contact 3241106 | Black | 1.25 in | 34.5 mm | 0.113 ft | 1.36 in | Polyamide (PA66), Nylon 6/6 | Free Hanging (In-Line) | 16 mm | 0.63 " | 0.63 in | 16 mm | Halogen Free | Twist Lock |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 377.67 | |
| 5 | $ 369.15 | |||
| 10 | $ 363.47 | |||
| 25 | $ 354.96 | |||
Description
General part information
WG-D HF Series
Twist Lock Black 0.30" (7.60mm) 0.299" (7.59mm)
