30-02480
ActiveTensility International Corp
CABLE 10COND 30AWG BLACK SHLD
30-02480
ActiveTensility International Corp
CABLE 10COND 30AWG BLACK SHLD
Description
General part information
30-02480

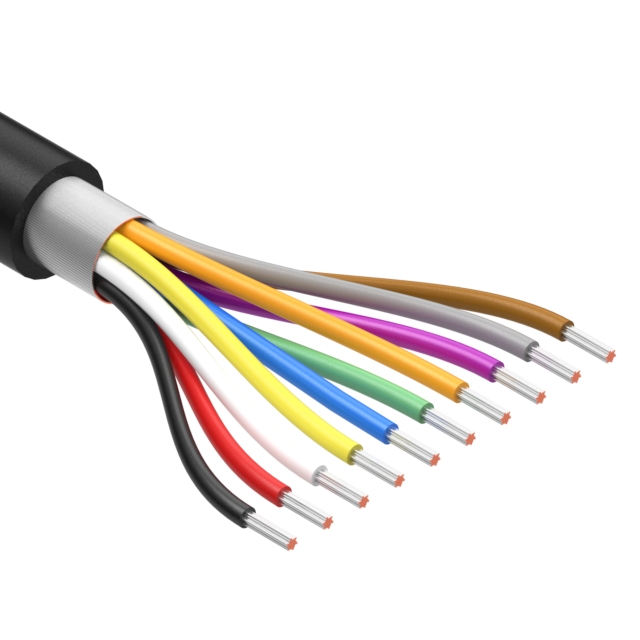

10 Conductor Multi-Conductor Cable Black 30 AWG Spiral 502.0' (153.0m)
Technical Specifications
Parameters and characteristics for this part
| Specification | 30-02480 |
|---|---|
| Cable Type | Conductor, Multi |
| Conductor Insulation | Fluorinated Ethylene-Propylene (FEP) |
| Conductor Material | Tinned, Copper |
| Conductor Strand Count | 7 Strands |
| Conductor Strand Gauge | 38 AWG |
| Jacket (Insulation) Diameter | 0.157 in |
| Jacket (Insulation) Material | Thermoplastic Elastomer (TPE) |
| Jacket (Insulation) Thickness | 0.0236 in |
| Jacket Color | Black |
| Length | 502 ft |
| Number of Conductors | 10 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Ratings | UL, 21296, Style |
| Shield Coverage | 100 % |
| Shield Material | Copper, Tinned |
| Shield Type | Spiral |
| Voltage | 300 V |
| Wire Gauge | 30 AWG |
