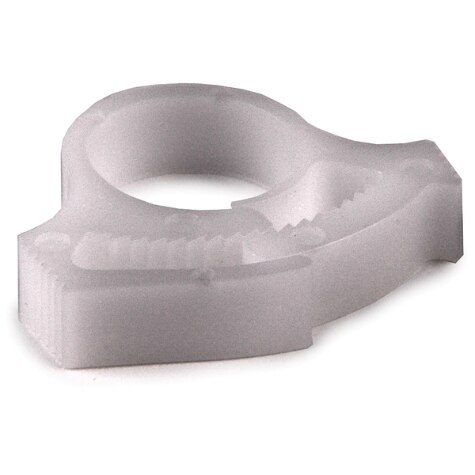

Specification	SNP810C2

Color	White
Length (Maximum)	0.971 in
Length (Minimum)	0.647 in
Material	Polyacetal (POM)
Material Flammability Rating	UL94 HB
Material Thickness	0.069 in
Opening Size (Max)	0.586 in
Opening Size (Min)	0.513 in
Type	Clamp, Hose
Type Attributes	Push-Fit
Width	0.231 in

SNP Series

Part	Type	Width	Type Attributes	Material Thickness	Length (Minimum)	Length (Maximum)	Material	Opening Size (Max)	Opening Size (Min)	Material Flammability Rating	Color
HELLERMANNTYTON SNP18A10M4	Clamp Hose	0.239 in	Push-Fit	0.067 in	0.94 in	1.391 in	Polyacetal (POM)	0.933 in	0.79 in	UL94 HB	White
