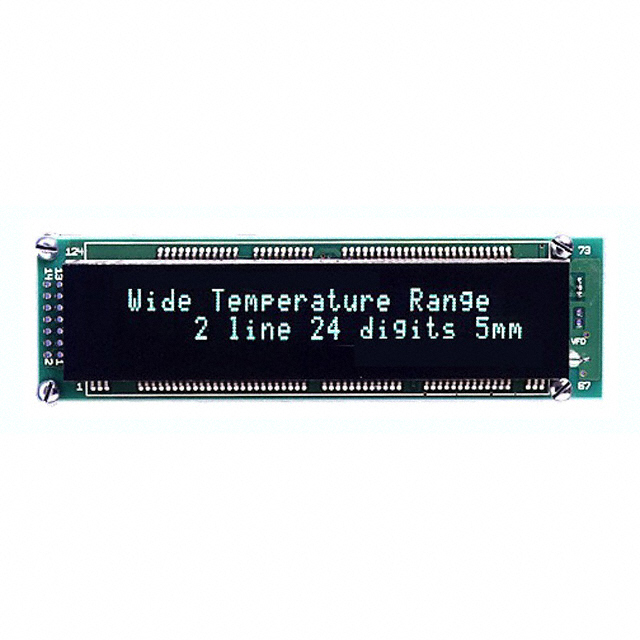

CU24025ECPB-W1J
ObsoleteNoritake U.S.A., Inc.
MODULE VF DISPLAY 24X2 5MM CHAR
CU24025ECPB-W1J
ObsoleteNoritake U.S.A., Inc.
MODULE VF DISPLAY 24X2 5MM CHAR
Description
General part information
CU24025ECPB-W1J
Vacuum Fluorescent Display (VFD) 24 x 2 Character 5V 125.00mm x 36.00mm x 20.74mm
Technical Specifications
Parameters and characteristics for this part
| Specification | CU24025ECPB-W1J |
|---|---|
| Character Height | 4.7 mm |
| Character Width | 2.4 mm |
| Display Columns | 24 |
| Display Rows | 2 |
| Display Type | Character |
| Format Height (Dots) | 7 Dots |
| Format Width (Dots) | 5 Dots |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Outline Height | 20.74 mm |
| Outline Length | 125 mm |
| Outline Width | 36 mm |
| Viewing Area Length | 85.2 mm |
| Viewing Area Width | 11.5 mm |
| Voltage - Supply | 5 VDC |
