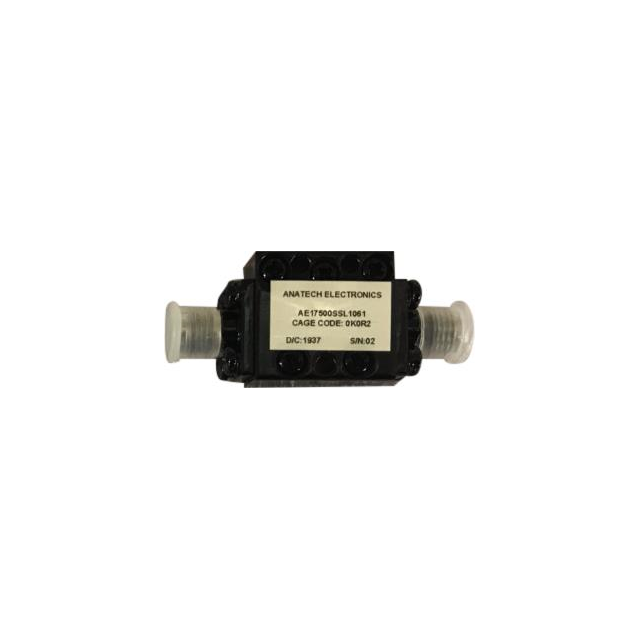

AE17500SSL1061
ActiveAnatech Electronics Inc.
RF FILTER LOWPASS 17.5GHZ MODULE
AE17500SSL1061
ActiveAnatech Electronics Inc.
RF FILTER LOWPASS 17.5GHZ MODULE
Description
General part information
AE17500SSL1061
17.5GHz (Cutoff) Frequency Low Pass RF Filter (Radio Frequency) Bandwidth 3dB Module, SMA Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | AE17500SSL1061 |
|---|---|
| Filter Type | Low Pass |
| Frequency | 17.5 GHz |
| Height (Max) | 0.394 in |
| Insertion Loss | 3 dB |
| Mounting Type | Chassis Mount |
| Package / Case | Module, SMA Connectors |
| Size / Dimension Length | 0.709 in |
| Size / Dimension Width | 0.669 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
