Description
General part information

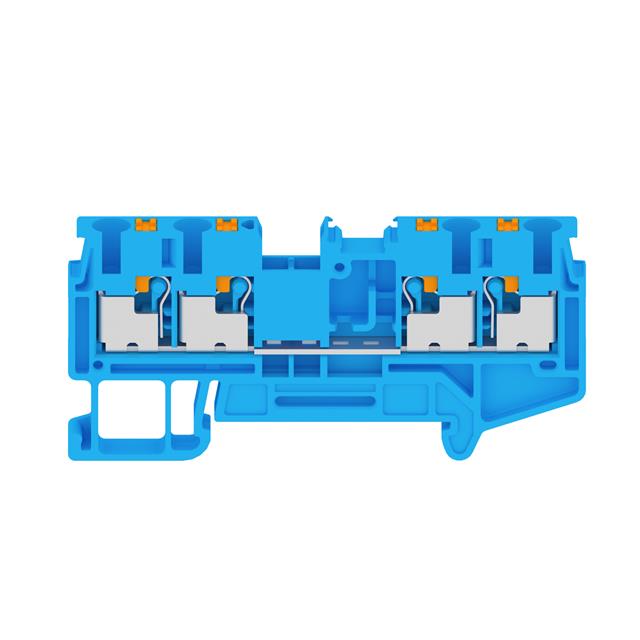

REB-B4B-BU
Terminal Block Connector 4 Position Feed Through Blue 12-26 AWG
Technical Specifications
Parameters and characteristics for this part
| Specification | REB-B4B-BU |
|---|---|
| Color | Blue |
| Current - UL | 20 A |
| Material - Insulation | Polyamide, PA66, Nylon 6/6 |
| Material Flammability Rating | UL94 V-0 |
| Number of Levels | 1 |
| Number of Positions | 4 |
| Stripping Length (Max) | 10 mm |
| Stripping Length (Min) | 8 mm |
| Terminal Width | 5.2 mm |
| Termination Style | Push In, Spring |
| Type | Feed Through |
| Voltage - UL | 600 V |
| Wire Gauge or Range - AWG (Max) | 25.5 AWG |
| Wire Gauge or Range - AWG (Min) | 12 AWG |
| Wire Gauge or Range - mm² (Maximum) | 2.5 mm² |
| Wire Gauge or Range - mm² (Minimum) | 0.2 mm² |
