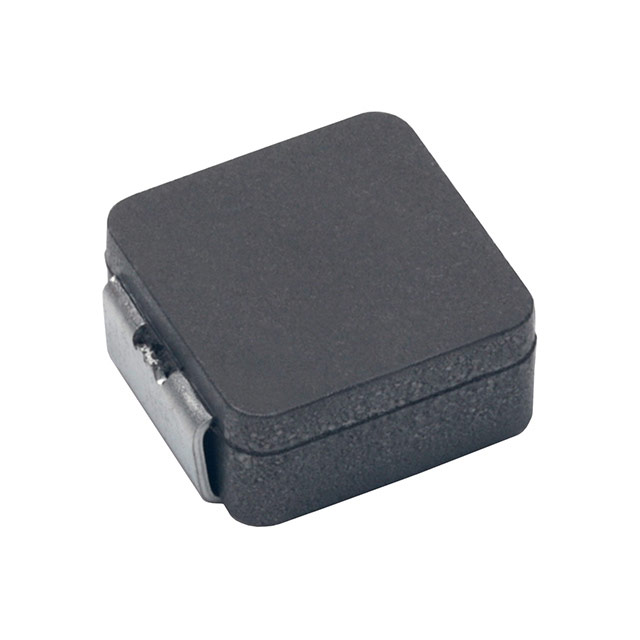

Specification	MPX1D0840L150

Current - Saturation (Isat)	6.5 A
Current Rating	5.2 A
DC Resistance (DCR) (Max)	65 mOhm
Height - Seated (Max)	0.157 in
Inductance	15 µH
Inductance Frequency - Test	100 kHz
Material - Core	Metal Composite
Mounting Type	Surface Mount
Operating Temperature (Max)	155 °C
Operating Temperature (Min)	-55 °C
Package / Case	Nonstandard
Shielding	Shielded
Size / Dimension Length	0.341 in
Size / Dimension Width	0.315 in
Tolerance	20 %
Type	Drum Core, Wirewound

MPX1D0840 Series

Part	DC Resistance (DCR) (Max)	Inductance Frequency - Test	Height - Seated (Max)	Current Rating	Size / Dimension Width	Size / Dimension Length	Current - Saturation (Isat)	Material - Core	Operating Temperature (Max)	Operating Temperature (Min)	Package / Case	Type	Inductance	Tolerance	Mounting Type	Shielding	Frequency - Self Resonant
KEMET MPX1D0630L100	78 mOhm	100 kHz	0.118 in	4.2 A	0.256 in	0.276 in	4.5 A	Metal Composite	155 °C	-55 °C	Nonstandard	Drum Core Wirewound	10 µH	20 %	Surface Mount	Shielded
KEMET MPX1D0630LR10	1.5 mOhm	100 kHz	0.118 in	31.1 A	0.256 in	0.276 in	50 A	Metal Composite	155 °C	-55 °C	Nonstandard	Drum Core Wirewound	100 nH	20 %	Surface Mount	Shielded
KEMET MPX1D0530L220	341.2 mOhm	100 kHz	0.118 in	2 A	0.197 in	0.209 in	2.5 A	Metal Composite	155 °C	-55 °C	Nonstandard	Drum Core Wirewound	22 µH	20 %	Surface Mount	Shielded
KEMET MPX1D0840L100	49.6 mOhm	100 kHz	0.157 in	6 A	0.315 in	0.341 in	7.5 A	Metal Composite	155 °C	-55 °C	Nonstandard	Drum Core Wirewound	10 µH	20 %	Surface Mount	Shielded
KEMET MPX1D0840L2R2	8.7 mOhm	100 kHz	0.157 in	14.3 A	0.315 in	0.341 in	17 A	Metal Composite	155 °C	-55 °C	Nonstandard	Drum Core Wirewound	2.2 µH	20 %	Surface Mount	Shielded
KEMET MPX1D0624LR33	4.2 mOhm	100 kHz	0.094 in	17.2 A	0.256 in	0.276 in	22.5 A	Metal Composite	155 °C	-55 °C	Nonstandard	Drum Core Wirewound	330 nH	20 %	Surface Mount	Shielded
KEMET MPX1D0618LR68	12.7 mOhm	100 kHz	0.071 in	8.8 A	0.256 in	0.276 in	13 A	Metal Composite	155 °C	-55 °C	Nonstandard	Drum Core Wirewound	680 nH	20 %	Surface Mount	Shielded
KEMET MPX1D2213L4R7	2.2 mOhm	100 kHz	0.512 in	48 A	0.866 in	0.886 in	40 A	Metal Composite	155 °C	-55 °C	Nonstandard	Drum Core Wirewound	4.7 µH	20 %	Surface Mount	Shielded	9 MHz
KEMET MPX1D1740L100	21.7 mOhm	100 kHz	0.157 in	9.5 A	0.673 in	0.669 in	14.5 A	Metal Composite	155 °C	-55 °C	Nonstandard	Drum Core Wirewound	10 µH	20 %	Surface Mount	Shielded	6.8 MHz
KEMET MPX1D0630L3R3	30.3 mOhm	100 kHz	0.118 in	6.8 A	0.256 in	0.276 in	7 A	Metal Composite	155 °C	-55 °C	Nonstandard	Drum Core Wirewound	3.3 µH	20 %	Surface Mount	Shielded
