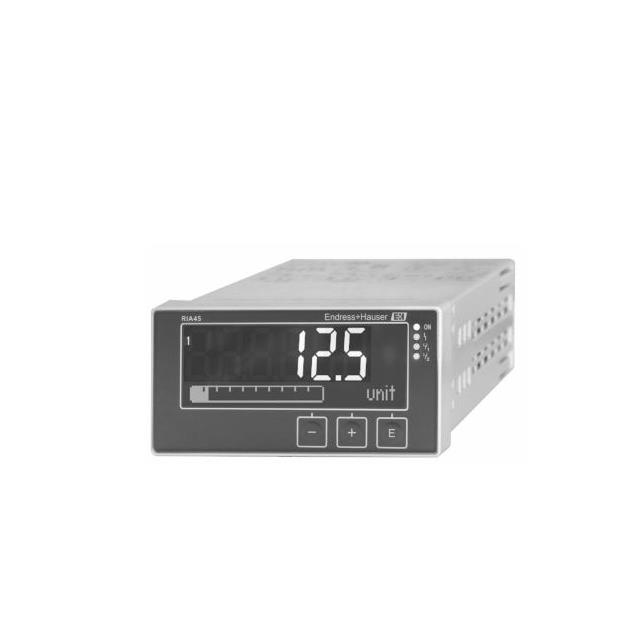

RIA45-A1C1

Active

Endress+Hauser

DISPLAY, 1X UNI; 1X ANALOG

Search across all available documentation for this part.

Active

Endress+Hauser

DISPLAY, 1X UNI; 1X ANALOG

Technical Specifications

Parameters and characteristics for this part

Specification	RIA45-A1C1

Display Type	LCD - Tri Color Characters, Backlight
Ingress Protection	IP65 - Dust Tight, Water Resistant, NEMA 4
Measuring Range	Multiple
Measuring Type	Thermistor, Current, Voltage, Thermocouple, Process, Resistance
Number of Characters Per Row	5
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Output Type	Relay (2), Analog
Panel Cutout Dimensions [x]	91.95 mm
Panel Cutout Dimensions [y]	44.96 mm
Termination Style	Spring Terminal
Type	Multifunction Meter
Voltage - Supply [Max]	230 VAC
Voltage - Supply [Min]	24 VAC

DISPLAY, 1X UNI; 1X ANALOG

Part	Type	Operating Temperature [Min]	Operating Temperature [Max]	Measuring Range	Termination Style	Display Type	Number of Characters Per Row	Ingress Protection	Output Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Measuring Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]
Endress+Hauser RIA45-A1C1	Multifunction Meter	-20 C	60 °C	Multiple	Spring Terminal	LCD - Tri Color Characters, Backlight	5	IP65 - Dust Tight, Water Resistant, NEMA 4	Analog, Relay (2)	230 VAC	24 VAC	Current, Process, Resistance, Thermistor, Thermocouple, Voltage	91.95 mm	44.96 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 637.63

General part information

Multifunction Meter LCD - Tri Color Characters, Backlight Display Panel Mount
