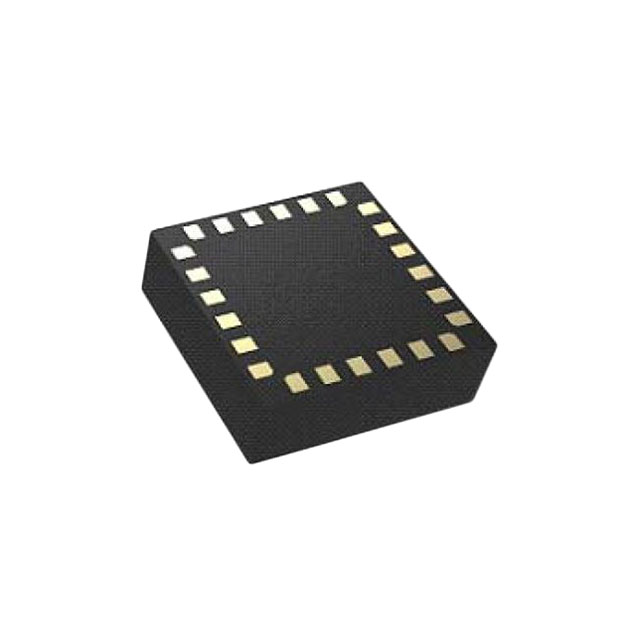

BHI160

Obsolete

Bosch Sensortec

IMU ACCEL/GYRO 3-AXIS I2C 24LGA

Search across all available documentation for this part.

Obsolete

Bosch Sensortec

IMU ACCEL/GYRO 3-AXIS I2C 24LGA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Accelerometer, Gyroscope, 6 Axis Sensor I2C Output

Technical documentation and resources

Specification	BHI160	BHI160 Series

Contents	-	Board(s)
Function	-	Accelerometer, Gyroscope, Magnetometer
Interconnect System	-	Shuttle Board 3.0 Socket
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Output Type	I2C	I2C
Package / Case	24-VFLGA Module	24-VFLGA Module
Primary Attributes	-	±1000, ±16, ±125, ±2, ±2000, ±4, ±2500, ±500, ±250, ±8, ±1300
Secondary Attributes	-	I2C Interface(s)
Sensor Type	Accelerometer, Gyroscope, 6 Axis	Accelerometer, Gyroscope, 6 Axis
Supplier Device Package	24-LGA (3x3)	24-LGA (3x3)
Type	-	Sensor
Utilized IC / Part	-	BHI160, BHI160B, BMM150

Part	Output Type	Sensor Type	Supplier Device Package	Package / Case	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Contents	Utilized IC / Part	Function	Type	Secondary Attributes	Primary Attributes	Interconnect System
Bosch Sensortec BHI160	I2C	6 Axis, Accelerometer, Gyroscope	24-LGA (3x3)	24-VFLGA Module	Surface Mount	85 °C	-40 °C
Bosch Sensortec BHI160-SHUTL								Board(s)	BHI160	Accelerometer, Gyroscope	Sensor
Bosch Sensortec BHI160B	I2C	6 Axis, Accelerometer, Gyroscope	24-LGA (3x3)	24-VFLGA Module	Surface Mount	85 °C	-40 °C
Bosch Sensortec SHUTTLE BOARD 3.0 BHI160B								Board(s)	BHI160B, BMM150	Accelerometer, Gyroscope, Magnetometer	Sensor	I2C Interface(s)	±1000, ±125, ±1300, ±16, ±2, ±2000, ±250, ±2500, ±4, ±500, ±8	Shuttle Board 3.0 Socket
