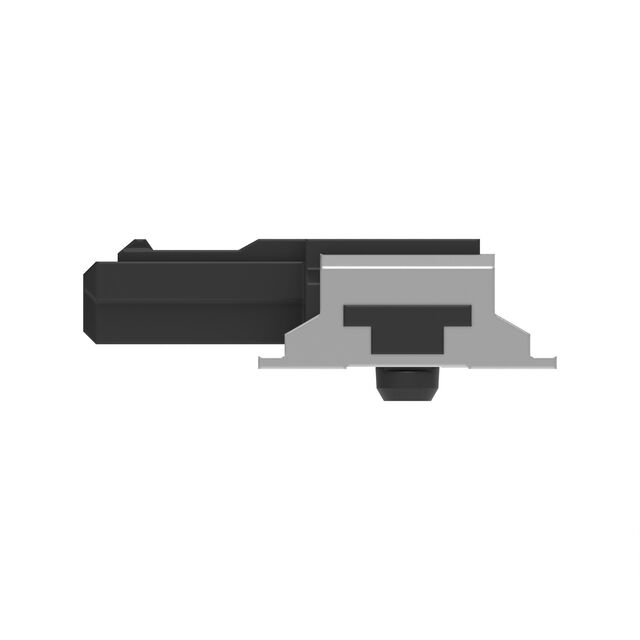

384845-E

Active

TE Connectivity Erni

2-PIN, RIGHT ANGLE, SMT

Deep-Dive with AI

Search across all available documentation for this part.

384845-E

Active

TE Connectivity Erni

2-PIN, RIGHT ANGLE, SMT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	384845-E	- Series

	-	-
Accessory Type	-	Nut, Coding Keys, O-Ring, Cap (Cover), Retainer, Guide Bushing, Dust, Shroud
Applications	-	General Purpose
Area (L x W)	-	33 cm²
Area (L x W)	-	5.12 in²
Area (L x W)	-	6.39 - 11.6 in²
Area (L x W)	-	41.23 - 75 cm²
Board-Side Pitch	-	1.27 mm
Board-Side Pitch	-	0.05 in
Cable Pitch	-	1.27 mm
Cable Pitch	-	0.05 in
Cable Termination	-	IDC
Color	-	Black, White, Red, Green, Light Gray, Gray, Natural, Blue, Yellow
Connector Style	-	A 22, Standard, B 19, F 11, B 22, Distributor Y-Shaped, D-Sub, C 11, B 25, DE 25, Blade Power, AB 22, AB 19, B 8
Connector Type	Receptacle	Female Sockets, Insert, Header, Male Pins, Array, Header, Male Pins, Individual Wires, Receptacle, Receptacle, Female Sockets, Receptacle, Female Blade Sockets, Male Blades, Plug, Non-Gendered, Plug to Plug, Plug, Jack, Contact, Ribbon Cable, DIP Header
Contact Finish	-	Gold, Tin, Silver
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin, Gold
Contact Finish Thickness	-	3.94 - 78.7 µin
Contact Finish Thickness	-	0.1 - 2 µm
Contact Finish Thickness - Mating	-	2.5 µm
Contact Finish Thickness - Mating	-	98.4 µin
Contact Finish Thickness - Post	157.5 Áin	78.7 - 157.5 Áin
Contact Finish Thickness - Post	4 Ám	2 - 98.4 Ám
Contact Finish Thickness - Post	-	2.5 µm
Contact Layout, Typical	-	60
Contact Layout, Typical	-	30
Contact Layout, Typical	-	40 Differential Pairs
Contact Length - Mating	-	0.087 - 0.157 in
Contact Length - Mating	-	2.21 - 4 mm
Contact Length - Mating	-	0.161 in
Contact Length - Mating	-	4.09 mm
Contact Length - Post	-	1.2 mm
Contact Length - Post	-	0.047 in
Contact Material	Copper Alloy	Copper Alloy, Phosphor Bronze
Contact Shape	Square	Square, Rectangular
Contact Termination	-	Crimp, IDC, Receptacle to Receptacle, Solder, PCB, Solder Cup
Contact Type	Female Socket	Male Pin, Female Socket, Female Blade Socket, Signal, Male Blade
Container Type	-	Enclosure
Convert From (Adapter End)	-	Male Pins, Female Sockets
Convert To (Adapter End)	-	Female Sockets, Female Sockets (1), Male Pins (1)
Current Rating (Amps)	4.8 A	1.7 - 250 A
Design	-	Cover Included, Open End(s)
Dielectric Material	-	Plastic
Fastening Type	Friction Lock	Latch Holder, Latch Lock, Locking Ramp, Push-Pull, Friction Lock
Features	Solder Retention, Board Guide	Board Guide, Insert Only, Requires Shell, Solder Retention, Ground Bus (Plane), Pick and Place, Closed End, Flange, Coupling Nut, Feed Through, Backshell, Upper Shield, Screw not Included, For Reeled Terminals, Shielded
Flange Feature	-	Cable Side
Flange Feature	-	Male Jackscrew (4-40)
For Use With/Related Products	-	LDG-A 12, M12 Male Connector, M8 Female Connector, Backplane Connectors, MAXIBRIDGE Series, Rectangular Contacts, iBridge Ultra Female Connector, LDG-A 30, M12 Female Connector
Height	-	100 mm
Height	-	3.937 in
Height Above Board	-	3.8 - 9.8 mm
Height Above Board	-	0.15 - 0.386 in
Height Above Board	-	2.83 - 9.75 mm
Height Above Board	-	0.111 - 0.384 in
Housing Color	-	Black
Housing Material	-	Polybutylene Terephthalate (PBT)
Ingress Protection	-	IP67, IP65, IP67 - Dust Tight, Waterproof, IP40
Insert Material	-	Liquid Crystal Polymer (LCP)
Insulation Color	Black	Black, Green, Red, Natural, Blue
Insulation Height	-	3.47 - 13.8 mm
Insulation Height	-	0.137 - 0.543 in
Insulation Height	-	4.2 - 9.05 mm
Insulation Height	-	0.165 - 0.356 in
Insulation Height [custom]	0.119 in	0.119 - 0.388 in
Insulation Height [custom]	3.02 mm	3.02 - 9.86 mm
Insulation Material	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP), Polyamide (PA46), Nylon 4/6, Polyamide (PA66), Nylon 6/6
LED Color	-	Does Not Contain LED
Length	-	3.94 - 11.81 "
Length	-	0.1 - 300 mm
Length	-	15.5 - 160 mm
Length	-	0.051 - 6.3 "
Length	-	0.61 - 1.32 "
Level, Class	-	1
Mated Stacking Heights	-	3 - 5 mm
Material	-	VITON™, Plastic, Polycarbonate
Material - Insulation	-	Polybutylene Terephthalate (PBT), Glass Filled, Polycarbonate, Glass Filled
Material Flammability Rating	UL94 V-0	UL94 V-0, UL94 V-1
Mounting Type	Surface Mount, Right Angle	Surface Mount, Surface Mount, Right Angle, Through Hole, Right Angle, Free Hanging (In-Line), Through Hole, Right Angle, Board Edge
Note	-	Contacts Not Included
Number of Columns	-	10 - 15
Number of Pins	-	10 - 25
Number of Pins	-	6
Number of Ports	-	4
Number of Positions	2	1 - 160
Number of Positions	-	8
Number of Positions	-	24 - 95
Number of Positions	-	88
Number of Positions	-	16 - 38
Number of Positions	-	16
Number of Positions	-	40
Number of Positions	-	56
Number of Positions (Convert From)	-	4 - 5
Number of Positions (Convert To)	-	4 - 5
Number of Positions (Convert To)	-	2
Number of Positions Loaded	All	All
Number of Positions/Contacts	-	8p8c (RJ45, Ethernet)
Number of Rows	1	1 - 12
Operating Temperature [Max]	125 °C	70 - 150 °C
Operating Temperature [Min]	-55 °C	-55 - 0 °C
Orientation	-	A
Orientation	-	90 °
Orientation (Convert From)	-	A
Orientation (Convert To)	-	A
Pin or Socket	-	Pin, Socket
Pitch	-	0.031 - 0.3 in
Pitch	-	0.8 - 7.62 mm
Pitch - Cable	-	0.025 in
Pitch - Cable	-	0.64 mm
Pitch - Connector	-	0.05 in
Pitch - Connector	-	1.27 mm
Pitch - Mating	0.05 in	0.05 - 2.54 in
Pitch - Mating	1.27 mm	1.27 mm
Pitch - Mating	-	0.039 - 0.1 in
Pitch - Mating	-	0.079 in
Pitch - Mating	-	2 mm
Primary Material	-	Metal
Row Spacing	-	0.1 in
Row Spacing	-	1.27 - 2.54 mm
Row Spacing	-	0.05 - 0.085 in
Row Spacing - Mating	-	1.5 - 2.54 mm
Row Spacing - Mating	-	0.059 - 0.1 in
Row Spacing - Mating	-	0.05 - 0.079 in
Row Spacing - Mating	-	1.27 - 2 mm
Screw Size	-	M6, M4, M3, 6-32
Shell Size - Insert	-	M12-5, M12-8, M12, M8, M12-4, M12-12, M8-5
Shell Size - Insert (Convert From)	-	M12
Shell Size - Insert (Convert To)	-	M8
Shell Size - Insert (Convert To)	-	M12
Shell Size, Connector Layout	-	DE, E
Shell Size, Connector Layout	-	1
Shielding	-	Unshielded, Shielded, Shielded, EMI Finger
Shrouding	-	Shrouded - 4 Wall
Size / Dimension	-	2.953 - 3.925 in
Size / Dimension	-	1.772 - 2.953 "
Size / Dimension	-	45 - 75 mm
Size / Dimension	-	75 - 99.7 mm
Specifications	-	Blue, M4 Thread, M5 Thread, Gray, D, E, B
Style	-	Board to Cable/Wire, M, H 15, R/2 (1/2 R), D, C, B, E, TE, C/3, R, Q/2, Q/3, C/2, CD, B/3, B/2, RD, F
Style	-	1/3 C, 1/2 Q, 1/2 C, 1/3 B, 1/2 B
Tab Direction	-	Up and Down
Terminal Type	-	Shank Terminal, Screw Terminal, Power Tap
Termination	Solder	Solder Eyelet(s), Solder, Press-Fit, Screw, Quick Connect, IDC
Termination	-	0.25 in
Termination	-	6.3 mm
Thickness	-	1.4 - 1.5 mm
Thickness	-	0.055 - 0.059 in
Tool Type	-	Extraction Tool, Hand Crimper
Type	-	Terminal Block, Power, Frame, Stamped
Voltage Rating	-	24 - 300 VDC
Wire Entry Location	-	Side Entry
Wire Gauge	-	8 - 30 AWG
Wire Gauge	-	20 - 24 AWG
Wire Gauge	-	22 - 26 AWG
Wire Gauge or Range - AWG	-	20 - 24 AWG
Wire Gauge or Range - AWG	-	22 - 26 AWG
Wire Type	-	Discrete or Ribbon Cable, Ribbon Cable

- Series

FUEBGR

...

Part	Contact Material	Contact Finish - Mating	Shielding	Termination	Material Flammability Rating	Features	Orientation	Connector Type	Shell Size - Insert	Ingress Protection	Color	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Number of Positions Loaded	Contact Finish - Post	Number of Rows	Insulation Height	Insulation Height	Fastening Type	Shrouding	Insulation Color	Contact Length - Mating	Contact Length - Mating	Pitch - Mating	Pitch - Mating	Contact Shape	Style	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Type	Contact Finish	Height Above Board	Height Above Board	Pitch [x]	Pitch [x]	Number of Positions	For Use With/Related Products	Type	Connector Style
TE Connectivity Erni 043513
TE Connectivity Erni 354702-E	Copper Alloy	Gold	Unshielded	Solder Eyelet(s)	UL94 V-0	Board Guide, Insert Only, Requires Shell	A	Female Sockets, Insert	M12-5	IP65, IP67	Black	-25 °C	85 °C	Surface Mount
TE Connectivity Erni 515089-E		Gold		Solder		Board Guide, Solder Retention		Header						Surface Mount, Right Angle	All	Tin	1	3.5 mm	0.138 in	Latch Holder	Shrouded - 4 Wall	Black	0.138 in	3.5 mm	0.05 in	1.27 mm	Square	Board to Cable/Wire	157.5 Áin	4 Ám	Male Pin
TE Connectivity Erni 223249
TE Connectivity Erni 224557-E						Board Guide, Ground Bus (Plane), Pick and Place		Array, Male Pins						Surface Mount			2															Gold	5.8 mm	0.228 in	0.039 in	1 mm	50
TE Connectivity Erni 464583
TE Connectivity Erni 043860											Black																											LDG-A 12	Terminal Block
TE Connectivity Erni 233234
TE Connectivity Erni 454521
TE Connectivity Erni 923762-E				Press-Fit				Header, Male Pins				-55 °C	125 °C	Through Hole, Right Angle	All		5															Gold			0.079 in	2 mm	110 positions			A 22

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 2.60
		10	$ 2.27
		100	$ 2.03
	Digi-Reel®	1	$ 2.60
		10	$ 2.27
		100	$ 2.03
	Tape & Reel (TR)	850	$ 1.64
		1700	$ 1.40
		2550	$ 1.35
		5950	$ 1.28

Description

General part information

- Series

2 Position Receptacle Connector 0.050" (1.27mm) Surface Mount, Right Angle Gold
