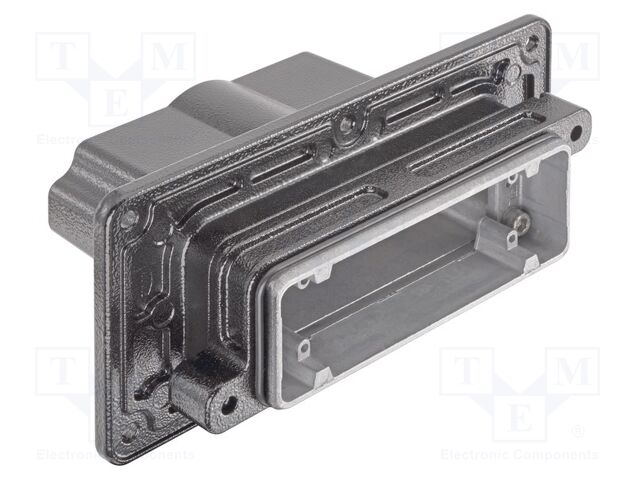

Specification	19400241119

Connector Type	Base - Panel Mount
Features	Corrosion Resistant
Housing Color	Black
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection Description	Water Resistant, Waterproof, Dust Tight
Ingress Protection IP Rating	IP68, IP69K, IP65
Lock Location	Screw Locks on Hood
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Size	24B
Style	Top Entry
Thread Size	M50

Han HPR Series

Part	Accessory Type	Ratings	For Use With/Related Products	Specifications	Housing Material	Ingress Protection IP Rating	Ingress Protection Description	Housing Color	Housing Finish	Size	Size / Dimension Length	Size / Dimension Width	Size / Dimension Height	Style	Thread Size	Lock Location	Connector Angle	Connector Type	Operating Temperature (Max)	Operating Temperature (Min)	Includes	Frame Quantity	Includes Total Count	Gender	Frame Type	Material	Contact Material	Type	Pin or Socket	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Contact Termination
HARTING 09400245401	Cover with Retaining Cord	IP65 - Dust Tight Water Resistant	Han® 24B Bases	Screw Locks
HARTING 19400240631					Aluminum Die Cast	IP65 IP68 IP69K	Dust Tight Water Resistant Waterproof	Black	Powder Coated	24B	7.559 in	3.15 in	3.543 in	Side Entry Triple	M25	Screw Locks on Hood	90	Hood Hood - 90°	125 °C	-40 °C
HARTING 09400009933	Locking Screw		Han® HPR Housings
HARTING 09400009904										24B									125 °C	-40 °C	Frame	1 pcs	1 pc	Non-Gendered	Mounting Frame	Metal
HARTING 19400100501					Aluminum Die Cast	IP65 IP68 IP69K	Dust Tight Water Resistant Waterproof	Black	Powder Coated	10B	5.709 in	2.283 in	3.957 in	Side Entry	M25	Screw Locks on Hood		Hood	125 °C	-40 °C
HARTING 73550400013																											Nickel Chromium Aluminum	Stamped	Pin	24 AWG	19.5 AWG	Crimp
HARTING 09400100512					Aluminum Die Cast	IP65 IP68 IP69K	Dust Tight Water Resistant Waterproof	Black	Powder Coated	10B	5.709 in	2.283 in	3.957 in	Side Entry	PG21	Screw Locks on Hood		Hood	125 °C	-40 °C
HARTING 09400030902					Die Cast Zinc	IP65 IP68 IP69K	Dust Tight Water Resistant Waterproof	Black	Chromate	3A	1.787 in	1.083 in	1.354 in	Side Entry		Screw Locks on Hood	90	Base - Panel Mount Base - Panel Mount 90°	125 °C	-40 °C
HARTING 09400100811					Aluminum Die Cast	IP65 IP68 IP69K	Dust Tight Water Resistant Waterproof	Black	Powder Coated	10B	5.709 in	2.283 in	3.957 in	Bottom Entry		Screw Locks on Hood		Hood	125 °C	-40 °C
HARTING 19400240431					Aluminum Die Cast	IP65 IP68 IP69K	Dust Tight Water Resistant Waterproof	Black	Powder Coated	24B	7.559 in	2.283 in	4.331 in	Dual Top Entry	M25	Screw Locks on Hood		Hood	125 °C	-40 °C
