FRF40-001-12
ActiveSignal Microwave
2.92 MM (40GHZ) FIELD REPLACEAB
FRF40-001-12
ActiveSignal Microwave
2.92 MM (40GHZ) FIELD REPLACEAB
Description
General part information
FRF40-001-12

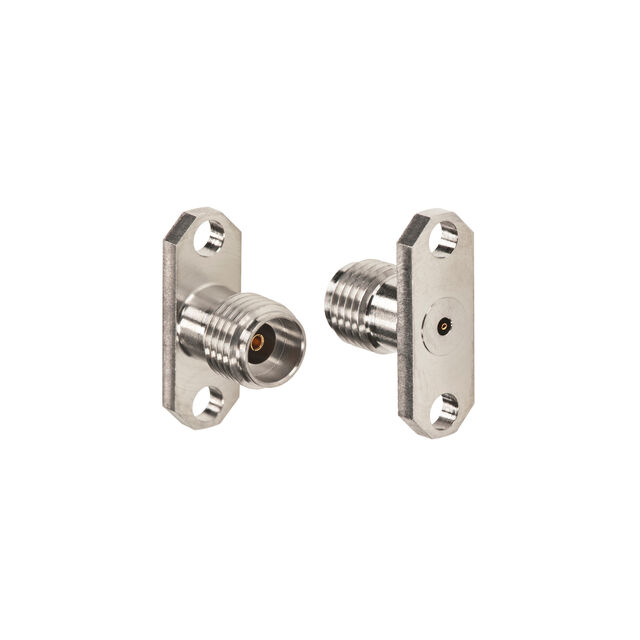

2.92mm Connector Receptacle, Female Socket 50 Ohms Panel Mount; Surface Mount Compression
Technical Specifications
Parameters and characteristics for this part
| Specification | FRF40-001-12 |
|---|---|
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Plug Diameter | 2.92 mm |
| Connector Type | Recepture, Female Socket |
| Contact Termination | Compression |
| Dielectric Material | Polychlorotrifluoroethylene (PCTFE) |
| Fastening Type | Threaded |
| Frequency - Max | 40 Gbps |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Mating Cycles | 500 cycles |
| Mounting Feature | Flange |
| Mounting Type | Panel Mount, Surface Mount |
| Number of Ports | 1 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Shield Termination | Screw |
