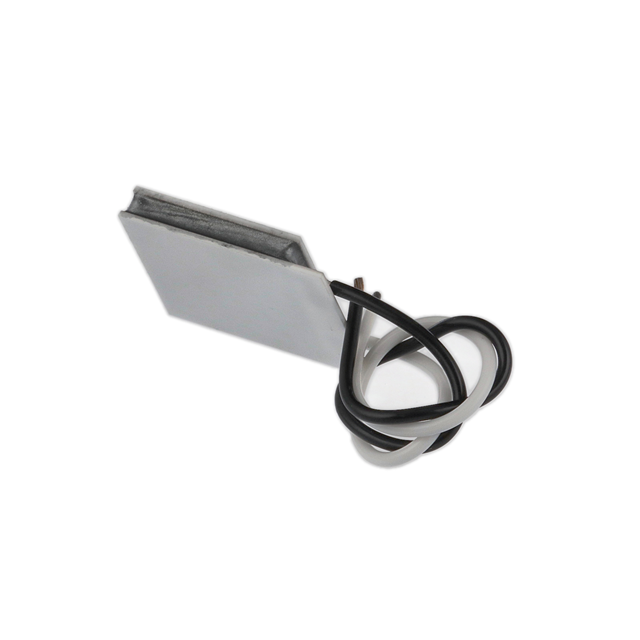

RC3-6-01S

Active

Marlow Industries, Inc.

TEM 20.1X20.1X3.91MM

Search across all available documentation for this part.

Active

Marlow Industries, Inc.

TEM 20.1X20.1X3.91MM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Peltier Module 13.0W @ 27°C 5.6 A 130°C

Technical documentation and resources

No documents available

Part	Features	Voltage - Max [Max]	Height [z]	Qmax @ Th	Current - Max [Max]	Resistance	Delta Tmax @ Th	Operating Temperature	Number of Stages	Size / Dimension [x]	Size / Dimension [y]
Marlow Industries, Inc. RC3-6-01S	Lead Wires, Sealed	3.6 V	4.01 mm	13 W	5.6 A	500 mOhms	65 °C	130 °C	1	24.6 mm	20.1 mm
Marlow Industries, Inc. RC3-6-01	Lead Wires	3.6 V	4.01 mm	13 W	5.6 A	500 mOhms	65 °C	130 °C	1	24.6 mm	20.1 mm
Marlow Industries, Inc. RC3-6-01L	Lapped, Lead Wires	3.6 V	3.91 mm	13 W	5.6 A	500 mOhms	65 °C	130 °C	1	24.6 mm	20.1 mm
Marlow Industries, Inc. RC3-6-01LS	Lapped, Lead Wires, Sealed	3.6 V	3.91 mm	13 W	5.6 A	500 mOhms	65 °C	130 °C	1	24.6 mm	20.1 mm
