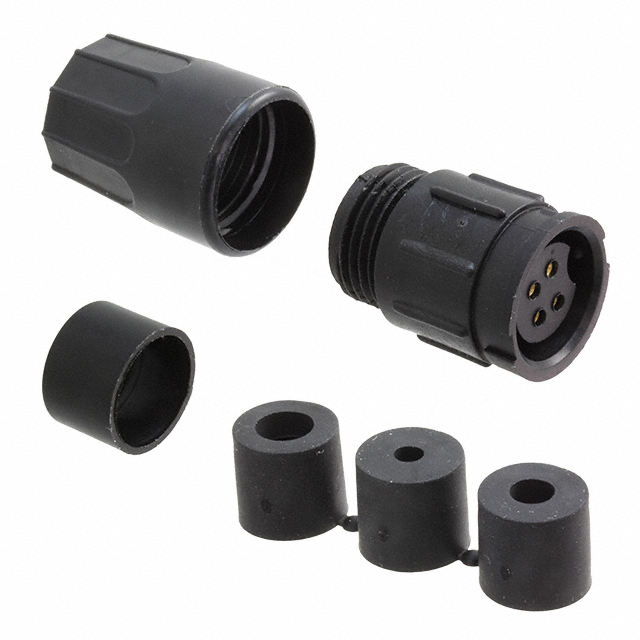

5282-4SG-3DC
ActiveConxall/Switchcraft
CONN RCPT FMALE 4P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5282-4SG-3DC
ActiveConxall/Switchcraft
CONN RCPT FMALE 4P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 5282-4SG-3DC | 5282-4SG Series |
|---|---|---|
| Backshell Material, Plating | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Cable Opening | - | 0.15 - 0.17 in |
| Cable Opening | - | 3.81 - 4.32 mm |
| Cable Opening | - | 6.86 - 7.37 mm |
| Cable Opening | - | 6.1 - 7.11 mm |
| Cable Opening | - | 0.27 - 0.29 in |
| Cable Opening | - | 0.24 - 0.28 in |
| Cable Opening | - | 4.57 mm |
| Cable Opening | - | 0.18 in |
| Cable Opening | - | 0.2 in |
| Cable Opening | - | 5.08 mm |
| Color | Black | Black |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Brass | Brass |
| Current Rating (Amps) | 5.6 A | 5.6 A |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Backshell | Cable Clamp, Backshell |
| Ingress Protection | Weathertight | Weathertight |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 4 | 4 |
| Operating Temperature [Max] | 115 °C | 115 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Voltage Rating | 600 V | 600 V |
5282-4SG Series
CONN RCPT FMALE 4P GOLD SLDR CUP
| Part | Orientation | Connector Type | Voltage Rating | Number of Positions | Features | Ingress Protection | Mounting Type | Contact Material | Cable Opening [custom] | Cable Opening [custom] | Fastening Type | Color | Shielding | Backshell Material, Plating | Contact Finish - Mating | Primary Material | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Min] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Max] [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Conxall/Switchcraft 5282-4SG-515 | Keyed | Receptacle, Female Sockets | 600 V | 4 | Backshell, Cable Clamp | Weathertight | Free Hanging (In-Line) | Brass | 0.15 in, 0.17 in | 3.81 mm, 4.32 mm | Bayonet Lock | Black | Unshielded | Nylon, Polyamide (PA) | Gold | Plastic | -40 °C | 115 °C | 5.6 A | ||||||||
Conxall/Switchcraft 5282-4SG-528 | Keyed | Receptacle, Female Sockets | 600 V | 4 | Backshell, Cable Clamp | Weathertight | Free Hanging (In-Line) | Brass | Bayonet Lock | Black | Unshielded | Nylon, Polyamide (PA) | Gold | Plastic | -40 °C | 115 °C | 5.6 A | 7.37 mm | 7.11 mm | 0.29 in | 0.28 in | ||||||
Conxall/Switchcraft 5282-4SG-3DC | Keyed | Receptacle, Female Sockets | 600 V | 4 | Backshell | Weathertight | Free Hanging (In-Line) | Brass | Bayonet Lock | Black | Unshielded | Nylon, Polyamide (PA) | Gold | Plastic | -40 °C | 115 °C | 5.6 A | ||||||||||
Conxall/Switchcraft 5282-4SG-524 | Keyed | Receptacle, Female Sockets | 600 V | 4 | Backshell, Cable Clamp | Weathertight | Free Hanging (In-Line) | Brass | Bayonet Lock | Black | Unshielded | Nylon, Polyamide (PA) | Gold | Plastic | -40 °C | 115 °C | 5.6 A | 6.86 mm | 6.1 mm | 0.27 in | 0.24 in | ||||||
Conxall/Switchcraft 5282-4SG-324 | Keyed | Receptacle, Female Sockets | 600 V | 4 | Backshell | Weathertight | Free Hanging (In-Line) | Brass | Bayonet Lock | Black | Unshielded | Nylon, Polyamide (PA) | Gold | Plastic | -40 °C | 115 °C | 5.6 A | 6.86 mm | 6.1 mm | 0.27 in | 0.24 in | ||||||
Conxall/Switchcraft 5282-4SG-518 | Keyed | Receptacle, Female Sockets | 600 V | 4 | Backshell, Cable Clamp | Weathertight | Free Hanging (In-Line) | Brass | Bayonet Lock | Black | Unshielded | Nylon, Polyamide (PA) | Gold | Plastic | -40 °C | 115 °C | 5.6 A | 4.57 mm | 0.18 in | 0.2 in | 5.08 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 15.91 | |
| 10 | $ 14.11 | |||
| 25 | $ 13.56 | |||
| 50 | $ 13.02 | |||
| 100 | $ 12.30 | |||
| 300 | $ 11.21 | |||
| 500 | $ 10.49 | |||
| 1000 | $ 9.62 | |||
Description
General part information
5282-4SG Series
4 Position Circular Connector Receptacle, Female Sockets Solder Cup
