Q-0102H0001072i

Active

Amphenol Custom Cable

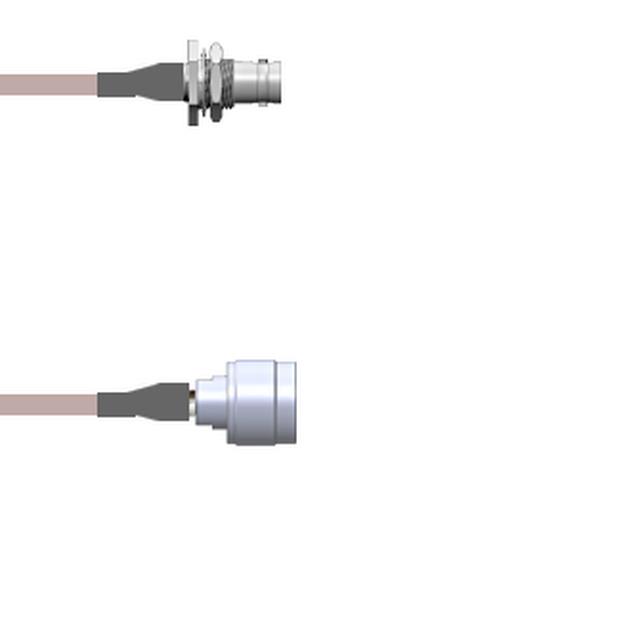

CBL ASSY BNC-NTYPE JACK-PLUG 6'

Deep-Dive with AI

Search across all available documentation for this part.

Q-0102H0001072i

Active

Amphenol Custom Cable

CBL ASSY BNC-NTYPE JACK-PLUG 6'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	Q-0102H0001072i	Q-0102H0 Series

1st Connector	BNC Jack	BNC Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount	Panel Mount
1st Contact Gender	Female	Female
2nd Connector	N-Type Plug	N-Type Plug
2nd Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
2nd Contact Gender	Male	Male
Cable Type	RG-178	RG-178
Color	Copper	Copper
Features	Shielded	Shielded
Frequency - Max [Max]	4 GHz	4 GHz
Length	6 ft	3.3 - 9.8 ft
Length	72 in	3 - 118.1 in
Length	1.8 m	1 - 1200 m
Length	-	457.2 mm
Length	-	250 - 457.2 mm
Length	-	9.843 "
Overall Impedance	50 Ohms	50 Ohms
Style	BNC to N-Type	BNC to N-Type

Q-0102H0 Series

CBL ASSY BNC-NTYPE JACK-PLUG 7'

Part	Features	2nd Connector	1st Connector	1st Connector Mounting Type	Frequency - Max [Max]	Style	2nd Connector Mounting Type	1st Contact Gender	Color	1st Connector Mounting Feature	Cable Type	2nd Contact Gender	Overall Impedance	Length	Length	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-0102H0001084i	Shielded	N-Type Plug	BNC Jack	Panel Mount	4 GHz	BNC to N-Type	Free Hanging (In-Line)	Female	Copper	Bulkhead - Front Side Nut	RG-178	Male	50 Ohms	84 in	2.1 m	7 ft
Amphenol Custom Cable Q-0102H00010.5M	Shielded	N-Type Plug	BNC Jack	Panel Mount	4 GHz	BNC to N-Type	Free Hanging (In-Line)	Female	Copper	Bulkhead - Front Side Nut	RG-178	Male	50 Ohms	19.69 "	50 cm
Amphenol Custom Cable Q-0102H0001108i	Shielded	N-Type Plug	BNC Jack	Panel Mount	4 GHz	BNC to N-Type	Free Hanging (In-Line)	Female	Copper	Bulkhead - Front Side Nut	RG-178	Male	50 Ohms	108 in	2.7 m	9 ft
Amphenol Custom Cable Q-0102H0001002M	Shielded	N-Type Plug	BNC Jack	Panel Mount	4 GHz	BNC to N-Type	Free Hanging (In-Line)	Female	Copper	Bulkhead - Front Side Nut	RG-178	Male	50 Ohms	78.7 in	2 m	6.6 ft
Amphenol Custom Cable Q-0102H0001018i	Shielded	N-Type Plug	BNC Jack	Panel Mount	4 GHz	BNC to N-Type	Free Hanging (In-Line)	Female	Copper	Bulkhead - Front Side Nut	RG-178	Male	50 Ohms				457.2 mm	457.2 mm
Amphenol Custom Cable Q-0102H0001003M	Shielded	N-Type Plug	BNC Jack	Panel Mount	4 GHz	BNC to N-Type	Free Hanging (In-Line)	Female	Copper	Bulkhead - Front Side Nut	RG-178	Male	50 Ohms	118.1 in	3 m	9.8 '
Amphenol Custom Cable Q-0102H00012.5M	Shielded	N-Type Plug	BNC Jack	Panel Mount	4 GHz	BNC to N-Type	Free Hanging (In-Line)	Female	Copper	Bulkhead - Front Side Nut	RG-178	Male	50 Ohms	98.4 in	2.5 m	8.2 '
Amphenol Custom Cable Q-0102H0001006i	Shielded	N-Type Plug	BNC Jack	Panel Mount	4 GHz	BNC to N-Type	Free Hanging (In-Line)	Female	Copper	Bulkhead - Front Side Nut	RG-178	Male	50 Ohms	6 in	152.4 mm
Amphenol Custom Cable Q-0102H0001009i	Shielded	N-Type Plug	BNC Jack	Panel Mount	4 GHz	BNC to N-Type	Free Hanging (In-Line)	Female	Copper	Bulkhead - Front Side Nut	RG-178	Male	50 Ohms	9 "	228.6 mm
Amphenol Custom Cable Q-0102H0001001M	Shielded	N-Type Plug	BNC Jack	Panel Mount	4 GHz	BNC to N-Type	Free Hanging (In-Line)	Female	Copper	Bulkhead - Front Side Nut	RG-178	Male	50 Ohms	39.4 in	1 m	3.3 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 82.41
		25	$ 80.87
		50	$ 79.32
		100	$ 77.78
		250	$ 76.24

Description

General part information

Q-0102H0 Series

Cable Assembly Coaxial BNC to N-Type RG-178 72.0" (1.8m) 6.0'

Documents

Technical documentation and resources

No documents available
