A 40-LC-TR

Active

Assmann WSW Components

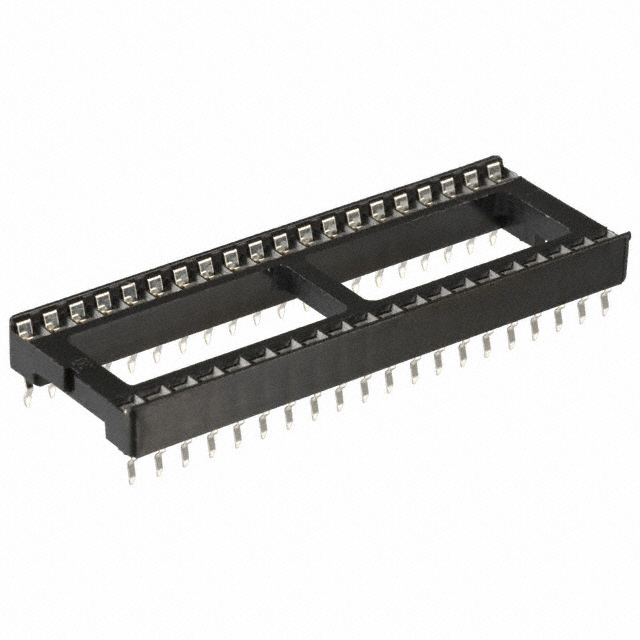

CONN IC DIP SOCKET 40POS TIN

Search across all available documentation for this part.

Active

Assmann WSW Components

CONN IC DIP SOCKET 40POS TIN

Technical Specifications

Parameters and characteristics for this part

Specification	A 40-LC-TR

Contact Finish - Post	Tin
Contact Material - Mating	Phosphor Bronze
Contact Material - Post	Phosphor Bronze
Contact Resistance	30 mOhm
Current Rating (Amps)	1 A
Features	Open Frame
Housing Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions or Pins (Grid)	40
Number of Positions or Pins (Grid) [custom]	20
Number of Positions or Pins (Grid) [custom]	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Solder
Termination Post Length	3.15 mm
Termination Post Length	0.124 in
Type	DIP
Type	0.6 in
Type	15.24 mm

CONN IC DIP SOCKET 40POS TIN

Part	Pitch - Mating	Pitch - Mating	Type	Type	Type	Features	Contact Finish - Post	Pitch - Post	Pitch - Post	Housing Material	Contact Material - Post	Material Flammability Rating	Contact Resistance	Termination Post Length	Termination Post Length	Contact Material - Mating	Mounting Type	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Number of Positions or Pins (Grid)	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]
Assmann WSW Components A 40-LC-TR	0.1 in	2.54 mm	DIP	0.6 in	15.24 mm	Open Frame	Tin	2.54 mm	0.1 in	Polybutylene Terephthalate (PBT)	Phosphor Bronze	UL94 V-0	30 mOhm	3.15 mm	0.124 in	Phosphor Bronze	Through Hole	Solder	85 °C	-55 °C	1 A	40	20	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

40 (2 x 20) Pos DIP, 0.6" (15.24mm) Row Spacing Socket Tin Through Hole
