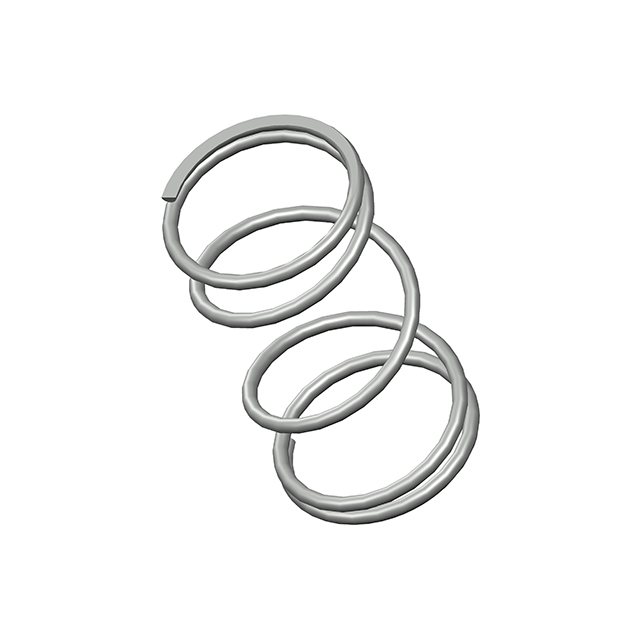

71468CS
ActiveCentury Spring Corp
COMP O= .480,L= .88,W= .035
71468CS
ActiveCentury Spring Corp
COMP O= .480,L= .88,W= .035
Description
General part information
71468CS
COMP O= .480,L= .88,W= .035
Technical Specifications
Parameters and characteristics for this part
| Specification | 71468CS |
|---|---|
| Diameter - Inside | 0.41 in |
| Diameter - Outside | 0.48 in |
| End Style | Ground, Closed |
| Finish | None |
| Free Length | 0.88 in |
| Material | Music Wire |
| Rate (lbs/in) | 8.3 lbs/in |
| Type | Compression |
| Wire Diameter | 0.035 in |
