USBLC6-2P6 - USBLC6-2P6

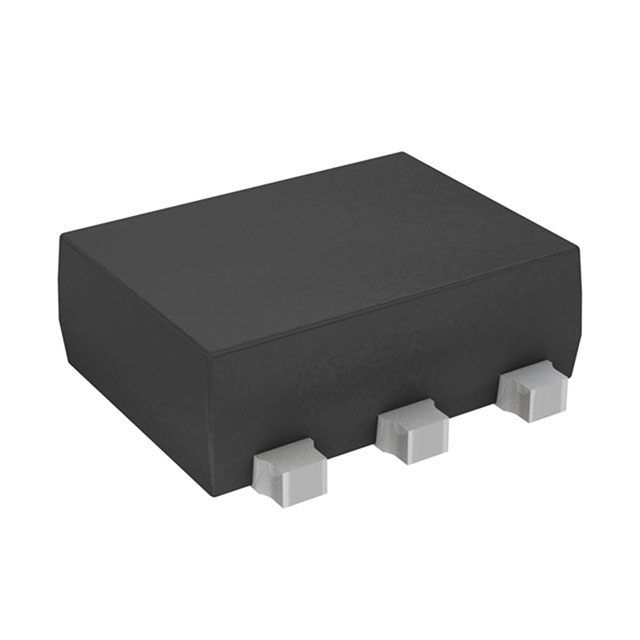

USBLC6-2P6

Active
STMicroelectronics

ESD PROTECTION DEVICE, ARRAY, 17 V, 1.1 V, SOT-666, 6 ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTA0324+28
USBLC6-2P6 - USBLC6-2P6

USBLC6-2P6

Active
STMicroelectronics

ESD PROTECTION DEVICE, ARRAY, 17 V, 1.1 V, SOT-666, 6 ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsTA0324+28

Technical Specifications

Parameters and characteristics commom to parts in this series

SpecificationUSBLC6-2P6USBLC6-2 Series
--
ApplicationsUSBUSB
Current - Peak Pulse (10/1000µs)5 A5 A
Mounting TypeSurface MountSurface Mount
Operating Temperature [Max]150 °C150 °C
Operating Temperature [Min]-40 °C-40 °C
Package / CaseSOT-666, SOT-563SOT-666, SOT-563
Power Line ProtectionTrueTrue
Supplier Device PackageSOT-666SOT-666
TypeSteeringSteering
Unidirectional Channels22
Voltage - Breakdown (Min) [Min]6 V6 V
Voltage - Clamping (Max) @ Ipp [Max]17 V17 V
Voltage - Reverse Standoff (Typ)5.25 V5.25 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 0.46
10$ 0.36
100$ 0.21
500$ 0.20
1000$ 0.13
Digi-Reel® 1$ 0.46
10$ 0.36
100$ 0.21
500$ 0.20
1000$ 0.13
Tape & Reel (TR) 3000$ 0.12
6000$ 0.12
9000$ 0.11
30000$ 0.11
75000$ 0.10
NewarkEach (Supplied on Cut Tape) 1$ 0.50
10$ 0.36
25$ 0.32
50$ 0.29
100$ 0.26
250$ 0.24
500$ 0.22

USBLC6-2 Series

ESD Protection for USB 2.0 High Speed

PartTypePackage / CaseCurrent - Peak Pulse (10/1000µs)Voltage - Reverse Standoff (Typ)Mounting TypeOperating Temperature [Max]Operating Temperature [Min]ApplicationsVoltage - Breakdown (Min) [Min]Unidirectional ChannelsPower Line ProtectionVoltage - Clamping (Max) @ Ipp [Max]Supplier Device Package
STMicroelectronics
USBLC6-2SC6
STMicroelectronics
USBLC6-2P6
STMicroelectronics
USBLC6-2P6
STMicroelectronics
USBLC6-2P6
STMicroelectronics
USBLC6-2P6
Steering
SOT-563, SOT-666
5 A
5.25 V
Surface Mount
150 °C
-40 °C
USB
6 V
2
17 V
SOT-666
STMicroelectronics
USBLC6-2SC6
STMicroelectronics
USBLC6-2SC6

Description

General part information

USBLC6-2 Series

The USBLC6-2SC6 and USBLC6-2P6 are monolithic application specific devices dedicated to ESD protection of high speed interfaces, such as USB 2.0, Ethernet links and video lines.

The very low line capacitance secures a high level of signal integrity without compromising in protecting sensitive chips against the most stringently characterized ESD strikes.
