3-87977-8

Active

TE Connectivity AMP Connectors

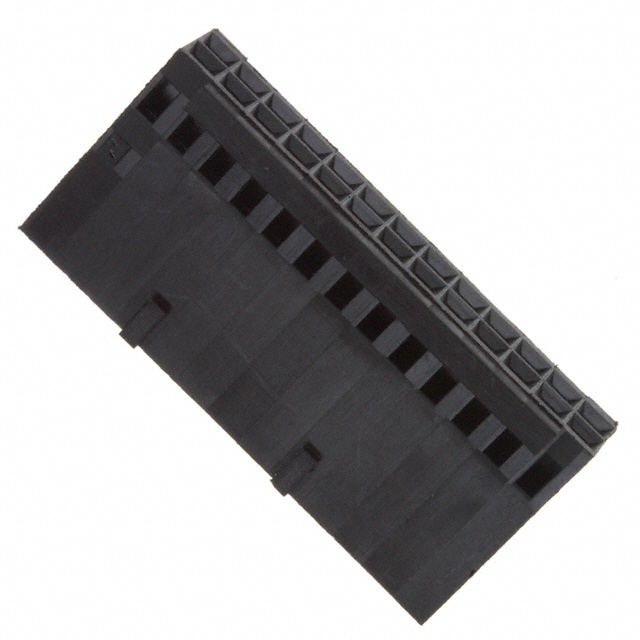

CONN RCPT HSG 26POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3-87977-8

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 26POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	3-87977-8	87977 Series

Color	Black	Black
Connector Type	Receptacle	Receptacle
Contact Termination	Crimp	Crimp
Contact Type	Female Socket	Female Socket
Insulation Material	Nylon, Polyamide (PA), Glass Filled	Thermoplastic, Nylon, Polyamide (PA), Glass Filled
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	26	6 - 56
Number of Positions	-	16
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Pitch [x]	2.54 mm	2.54 mm
Pitch [x]	0.1 in	0.1 in
Row Spacing	2.54 mm	2.54 mm
Row Spacing [x]	0.1 in	0.1 in

87977 Series

CONN RCPT HSG 6POS 2.54MM

Part	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Color	Contact Type	Contact Termination	Note	Connector Type	Pitch [x]	Pitch [x]	Row Spacing [x]	Row Spacing	Mounting Type	Insulation Material	Number of Positions	Number of Positions
TE Connectivity AMP Connectors 87977-1	-65 ░C	105 ░C	2	Black	Female Socket	Crimp	Contacts Not Included	Receptacle	2.54 mm	0.1 in	0.1 in	2.54 mm	Free Hanging (In-Line)	Thermoplastic	6
TE Connectivity AMP Connectors 3-87977-1	-65 ░C	105 ░C	2	Black	Female Socket	Crimp	Contacts Not Included	Receptacle	2.54 mm	0.1 in	0.1 in	2.54 mm	Free Hanging (In-Line)	Glass Filled, Nylon, Polyamide (PA)	12
TE Connectivity AMP Connectors 3-87977-0	-65 ░C	105 ░C	2	Black	Female Socket	Crimp	Contacts Not Included	Receptacle	2.54 mm	0.1 in	0.1 in	2.54 mm	Free Hanging (In-Line)	Glass Filled, Nylon, Polyamide (PA)	10
TE Connectivity AMP Connectors 3-87977-9	-65 ░C	105 ░C	2	Black	Female Socket	Crimp	Contacts Not Included	Receptacle	2.54 mm	0.1 in	0.1 in	2.54 mm	Free Hanging (In-Line)	Glass Filled, Nylon, Polyamide (PA)	28
TE Connectivity AMP Connectors 1-87977-8	-65 ░C	105 ░C	2	Black	Female Socket	Crimp	Contacts Not Included	Receptacle	2.54 mm	0.1 in	0.1 in	2.54 mm	Free Hanging (In-Line)	Thermoplastic	40
TE Connectivity AMP Connectors 87977-5	-65 ░C	105 ░C	2	Black	Female Socket	Crimp	Contacts Not Included	Receptacle	2.54 mm	0.1 in	0.1 in	2.54 mm	Free Hanging (In-Line)	Glass Filled, Nylon, Polyamide (PA)	14
TE Connectivity AMP Connectors 3-87977-4	-65 ░C	105 ░C	2	Black	Female Socket	Crimp	Contacts Not Included	Receptacle	2.54 mm	0.1 in	0.1 in	2.54 mm	Free Hanging (In-Line)	Glass Filled, Nylon, Polyamide (PA)	18
TE Connectivity AMP Connectors 87977-8	-65 ░C	105 ░C	2	Black	Female Socket	Crimp	Contacts Not Included	Receptacle	2.54 mm	0.1 in	0.1 in	2.54 mm	Free Hanging (In-Line)	Thermoplastic	20
TE Connectivity AMP Connectors 87977-6	-65 ░C	105 ░C	2	Black	Female Socket	Crimp	Contacts Not Included	Receptacle	2.54 mm	0.1 in	0.1 in	2.54 mm	Free Hanging (In-Line)	Thermoplastic		16
TE Connectivity AMP Connectors 87977-2	-65 ░C	105 ░C	2	Black	Female Socket	Crimp	Contacts Not Included	Receptacle	2.54 mm	0.1 in	0.1 in	2.54 mm	Free Hanging (In-Line)	Thermoplastic	8

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.17
		10	$ 1.94
		25	$ 1.93
		50	$ 1.91
		100	$ 1.74

Description

General part information

87977 Series

26 Rectangular Connectors - Housings Receptacle Black 0.100" (2.54mm)
