18-168.035

Active

EAO

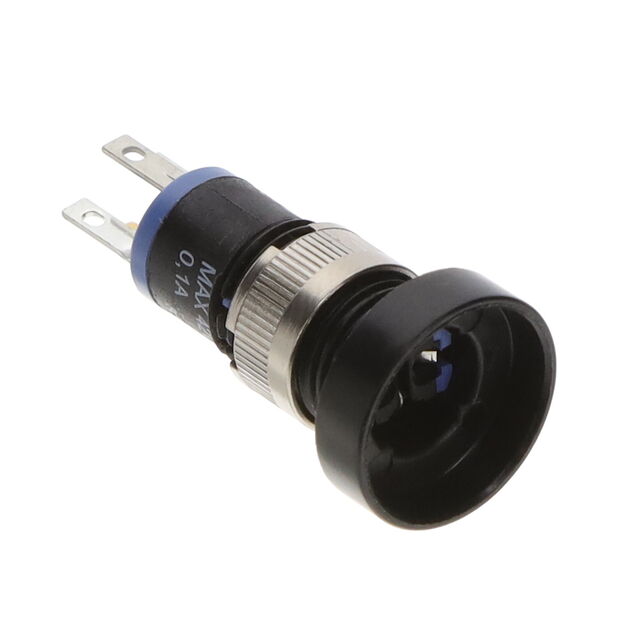

SWITCH PB SPST-NC 0.1A 42V

Search across all available documentation for this part.

Active

EAO

SWITCH PB SPST-NC 0.1A 42V

Technical Specifications

Parameters and characteristics for this part

Specification	18-168.035

Actuator Marking	No Marking
Actuator Type	Round, Button (Not Included)
Circuit	SPST-NC
Current Rating (Amps)	100 mA
Electrical Life	50000 Cycles
Ingress Protection	IP40
Mechanical Life	2000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	8 mm
Switch Function	On-Mom
Termination Style	Solder Lug
Type	Standard
Voltage Rating - AC	42 V
Voltage Rating - DC	42 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

SWITCH PB SPST-NC 0.1A 42V

Part	Actuator Marking	Mechanical Life	Termination Style	Voltage Rating - AC	Type	Panel Cutout Dimensions [diameter]	Switch Function	Current Rating (Amps)	Ingress Protection	Mounting Type	Actuator Type	Electrical Life	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Voltage Rating - DC
EAO 18-168.035	No Marking	2000000 Cycles	Solder Lug	42 V	Standard	8 mm	On-Mom	100 mA	IP40	Panel Mount, Front	Round, Button (Not Included)	50000 Cycles	65 °C	-25 °C	SPST-NC	42 V

General part information

Pushbutton Switch SPST-NC Standard Panel Mount, Front
