FWG.1B.307.CLA
ActiveLEMO

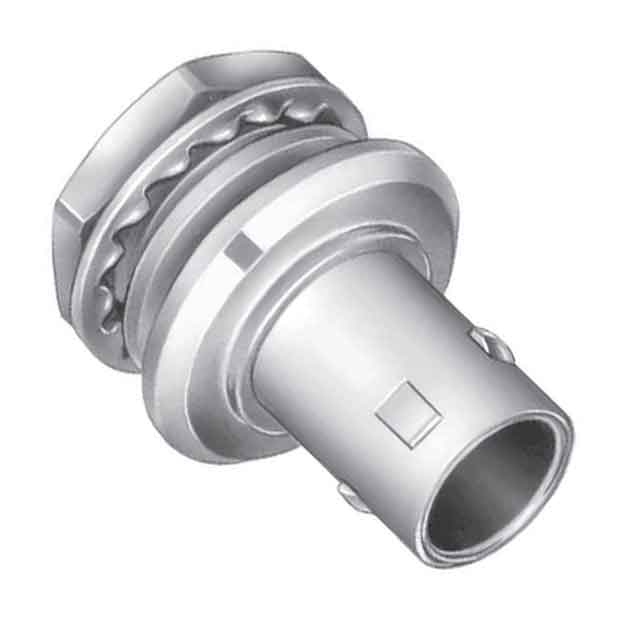

CONN PLUG MALE 7P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FWG.1B.307.CLA
ActiveLEMO
CONN PLUG MALE 7P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | FWG.1B.307.CLA | FWG.1B Series |
|---|---|---|
| Backshell Material, Plating | Brass, Chrome | Brass, Chrome |
| Color | Silver | Silver |
| Connector Type | Plug, Male Pins | Plug, Male Pins, Plug Housing |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 1 µm | 1 µm |
| Contact Finish Thickness - Mating | 39.4 µin | 39.4 µin |
| Contact Material | Brass | Brass |
| Contact Shape | - | Circular |
| Contact Size | - | 0.7 mm |
| Contact Type | - | Crimp |
| Current Rating (Amps) | 7 A | 2.5 - 15 A |
| Fastening Type | Push-Pull | Push-Pull, Detent Lock |
| Housing Color | - | Silver |
| Ingress Protection | IP50 | IP50 |
| Insert Material | Polyetheretherketone (PEEK) | Polyetheretherketone (PEEK) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Feature | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut |
| Mounting Type | - | Through Hole, Panel Mount |
| Note | - | Contacts Not Included |
| Number of Positions | 7 | 2 - 10 |
| Operating Temperature [Max] | 250 °C | 250 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | G | G |
| Primary Material | Metal | Metal |
| Shell Finish | Chrome | Chrome |
| Shell Material | Brass | Brass |
| Shell Size - Insert | 307 | 302 - 310 |
| Shielding | Shielded | Shielded |
| Termination | - | Solder, Crimp |
| Type | - | For Male Pins |
FWG.1B Series
CONN PLUG MALE 7POS GOLD SOLDER
| Part | Insert Material | Fastening Type | Connector Type | Contact Material | Contact Finish - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Orientation | Number of Positions | Shell Size - Insert | Material Flammability Rating | Termination | Backshell Material, Plating | Mounting Feature | Ingress Protection | Shielding | Primary Material | Current Rating (Amps) | Color | Operating Temperature [Min] | Operating Temperature [Max] | Shell Finish | Shell Material | Mounting Type | Housing Color | Contact Shape | Note | Contact Size | Type | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO FWG.1B.307.CLD | Polyetheretherketone (PEEK) | Push-Pull | Male Pins, Plug | Brass | Gold | 1 µm | 39.4 µin | G | 7 | 307 | UL94 V-0 | Solder | Brass, Chrome | Bulkhead - Rear Side Nut | IP50 | Shielded | Metal | 7 A | Silver | -55 °C | 250 °C | Chrome | Brass | Panel Mount, Through Hole | ||||||
LEMO FWG.1B.304.CYC | Polyetheretherketone (PEEK) | Push-Pull | Male Pins, Plug | Brass | Gold | 1 µm | 39.4 µin | G | 4 | 304 | UL94 V-0 | Crimp | Brass, Chrome | Bulkhead - Rear Side Nut | IP50 | Shielded | Metal | 10 A | Silver | -55 °C | 250 °C | Chrome | Brass | |||||||
LEMO FWG.1B.303.CLA | Polyetheretherketone (PEEK) | Push-Pull | Male Pins, Plug | Brass | Gold | 1 µm | 39.4 µin | G | 303 | UL94 V-0 | Brass, Chrome | Bulkhead - Rear Side Nut | IP50 | Shielded | Metal | 12 A | Silver | -55 °C | 250 °C | Chrome | Brass | |||||||||
LEMO FWG.1B.307.CLA | Polyetheretherketone (PEEK) | Push-Pull | Male Pins, Plug | Brass | Gold | 1 µm | 39.4 µin | G | 7 | 307 | UL94 V-0 | Brass, Chrome | Bulkhead - Rear Side Nut | IP50 | Shielded | Metal | 7 A | Silver | -55 °C | 250 °C | Chrome | Brass | ||||||||
LEMO FWG.1B.306.CLA | Polyetheretherketone (PEEK) | Push-Pull | Male Pins, Plug | Brass | Gold | 1 µm | 39.4 µin | G | 6 | 306 | UL94 V-0 | Brass, Chrome | Bulkhead - Rear Side Nut | IP50 | Shielded | Metal | 7 A | Silver | -55 °C | 250 °C | Chrome | Brass | ||||||||
LEMO FWG.1B.303.CYC | Polyetheretherketone (PEEK) | Push-Pull | Male Pins, Plug | Brass | Gold | 1 µm | 39.4 µin | G | 303 | UL94 V-0 | Crimp | Brass, Chrome | Bulkhead - Rear Side Nut | IP50 | Shielded | Metal | 12 A | Silver | -55 °C | 250 °C | Chrome | Brass | ||||||||
LEMO FWG.1B.310.CLA | Polyetheretherketone (PEEK) | Push-Pull | Male Pins, Plug | Brass | Gold | 1 µm | 39.4 µin | G | 10 | 310 | UL94 V-0 | Brass, Chrome | Bulkhead - Rear Side Nut | IP50 | Shielded | Metal | 2.5 A | Silver | -55 °C | 250 °C | Chrome | Brass | ||||||||
LEMO FWG.1B.306.CYZ | Polyetheretherketone (PEEK) | Detent Lock, Push-Pull | Plug Housing | G | 6 | 306 | Bulkhead - Rear Side Nut | IP50 | Shielded | -55 °C | 250 °C | Chrome | Brass | Silver | Circular | Contacts Not Included | 0.7 mm | For Male Pins | Crimp | |||||||||||
LEMO FWG.1B.308.CLA | Polyetheretherketone (PEEK) | Push-Pull | Male Pins, Plug | Brass | Gold | 1 µm | 39.4 µin | G | 8 | 308 | UL94 V-0 | Brass, Chrome | Bulkhead - Rear Side Nut | IP50 | Shielded | Metal | 5 A | Silver | -55 °C | 250 °C | Chrome | Brass | ||||||||
LEMO FWG.1B.305.CLA | Polyetheretherketone (PEEK) | Push-Pull | Male Pins, Plug | Brass | Gold | 1 µm | 39.4 µin | G | 305 | UL94 V-0 | Brass, Chrome | Bulkhead - Rear Side Nut | IP50 | Shielded | Metal | 9 A | Silver | -55 °C | 250 °C | Chrome | Brass |
