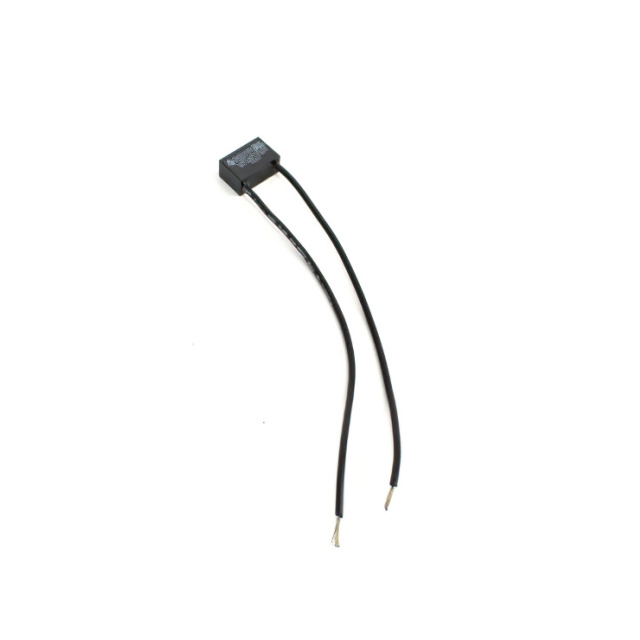

RG1983-8-6
ActiveElectrocube
RC NETWORK, 0.5 MFD, 220 OHM, 12
RG1983-8-6
ActiveElectrocube
RC NETWORK, 0.5 MFD, 220 OHM, 12
Description
General part information
RG1983-8-6
Ohm Power Per Element Resistor Network/Array
Technical Specifications
Parameters and characteristics for this part
| Specification | RG1983-8-6 |
|---|---|
| Applications | General Purpose |
| Capacitance | 0.5 µF |
| ESD Protection | No |
| Filter Order | 1 |
| Height | 0.66 in |
| Mounting Type | Through Hole |
| Number of Channels | 1 |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Radial |
| Resistance | 220 Ohm |
| Resistance - Channel (Ohms) | 220 Ohm |
| Size / Dimension Length | 1 in |
| Size / Dimension Width | 0.38 in |
| Technology | RC |
| Type | Low Pass |
| Voltage - Rated | 200 VDC |
