Description
General part information
E101GB-RW750-R

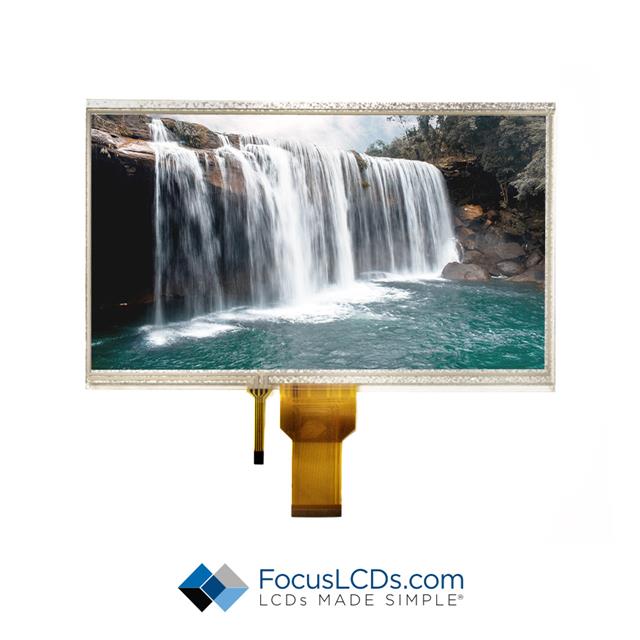

Resistive Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color 16-Bit/18-Bit/24-Bit RGB 10.1" (256.54mm) 1024 x 600
Technical Specifications
Parameters and characteristics for this part
| Specification | E101GB-RW750-R |
|---|---|
| Backlight Color | White |
| Backlight Type | LED |
| Controller Type | HX8282A01 |
| Diagonal Screen Size | 10.1 in |
| Display Mode | Transmissive |
| Display Type | TFT - Color |
| Dot Pixels (Horizontal) | 1024 pixels |
| Dot Pixels (Vertical) | 600 pixels |
| Graphics Color | Red, Green, Blue |
| Interface | RGB, 16-Bit/18-Bit/24-Bit RGB |
| Interface Data Width | 24 Bit, 16 Bit, 18 Bit |
| Touchscreen | Resistive |
| Viewing Area Height | 125.28 mm |
| Viewing Area Width | 222.72 mm |
